131056 DODGE - F2B-SXR-014

Brand - DODGE
Item Number - 131056 DODGE - F2B-SXR-014
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 2-Bolt Flange Bearings)
Series - 205
Shaft Size (inch) - 0.875
Description - F2B-SXR-014
Description (No Lube/Sealed for Life) - F2B-SXR-014-NL
Description (With Flingers) - F2B-SXR-014-FF
Weight (lbs) - 1.7

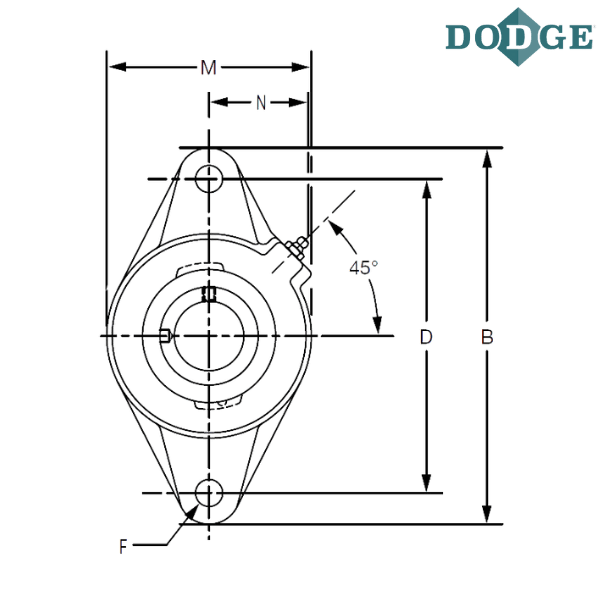

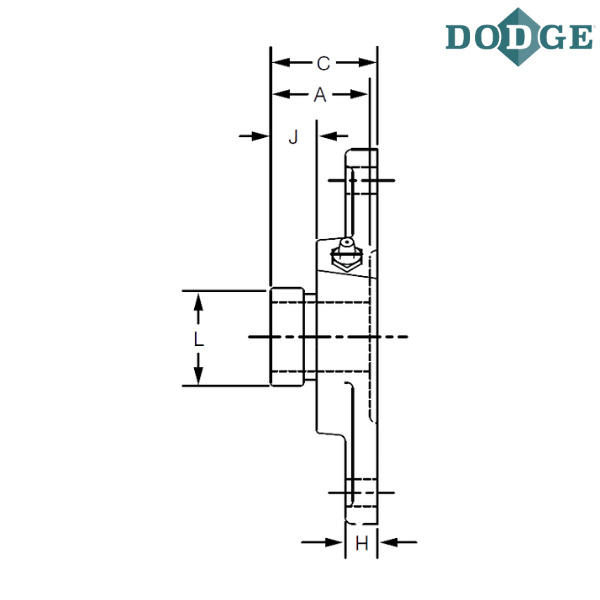

Length Through Bore (A) inch - 1.62
Overall Length (B) inch - 4.88
Thickness (C) inch - 1.65
Bolt Center to Center Length (D) inch - 3.89
F-Bolt Diameter (inch) - 0.4375
H (inch) - 0.52
J (inch) - 0.7
L (inch) - 1.5
Overall Width (M) inch - 2.75
N (inch) - 1.44
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2 bolt flange
SXR - Wide inner ring, normal duty, Eccentric locking Collar

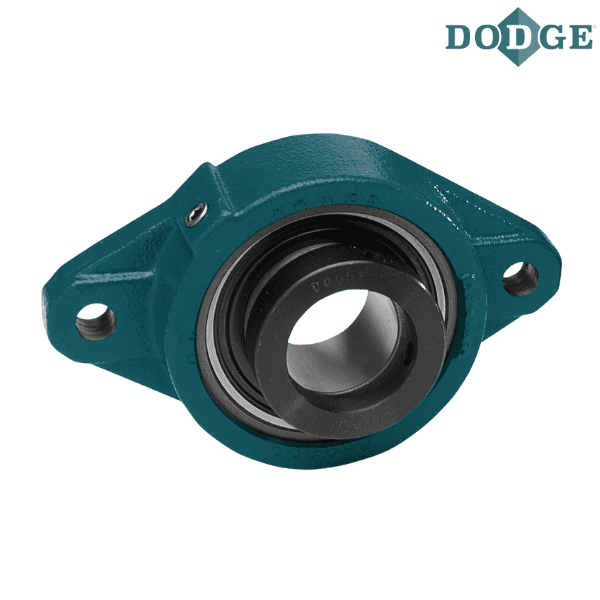

** Images are for representation purposes only
