131054 DODGE - F2B-SXR-012

Brand - DODGE
Item Number - 131054 DODGE - F2B-SXR-012

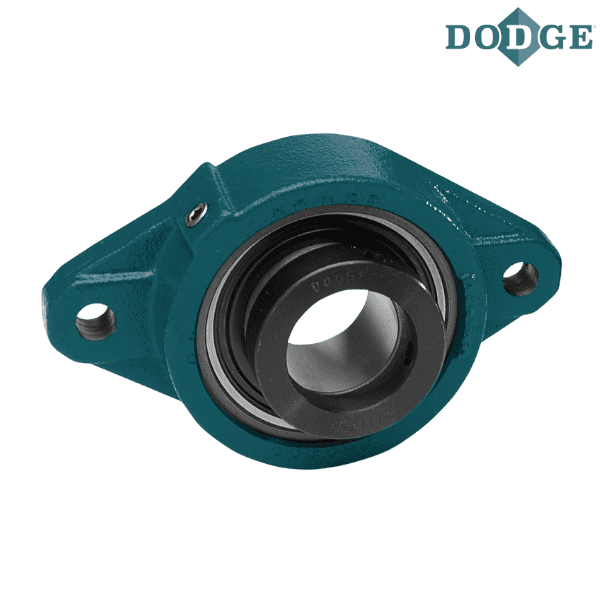

Category - Eccentric Collar Ball Bearings (SXR Normal Duty 2-Bolt Flange Bearings)
Series - 204
Shaft Size (inch) - 0.75
Description - F2B-SXR-012
Description (No Lube/Sealed for Life) - F2B-SXR-012-NL
Description (With Flingers) - F2B-SXR-012-FF
Weight (lbs) - 1.2

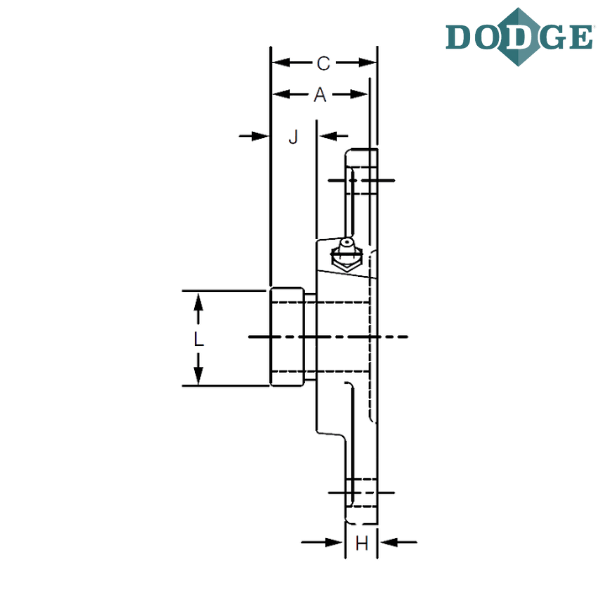

Length Through Bore (A) inch - 1.55

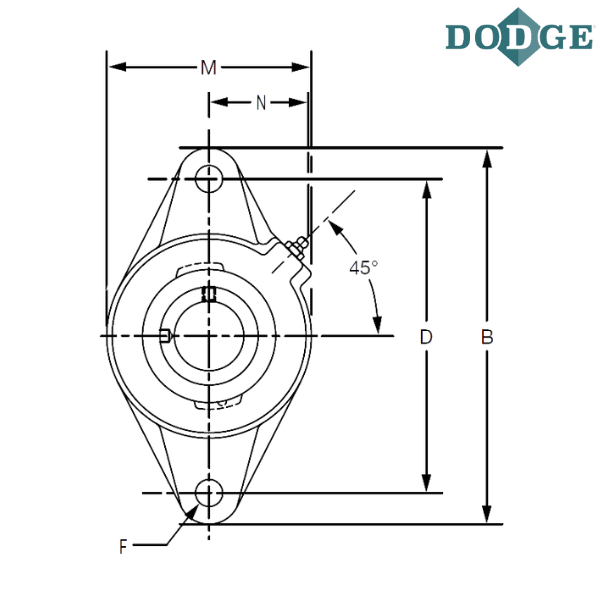

Overall Length (B) inch - 4.41
Thickness (C) inch - 1.66
Bolt Center to Center Length (D) inch - 3.53
F-Bolt Diameter (inch) - 0.375
H (inch) - 0.5
J (inch) - 0.68
L (inch) - 1.31
Overall Width (M) inch - 2.38
N (inch) - 1.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2 bolt flange
SXR - Wide inner ring, normal duty, Eccentric locking Collar

** Images are for representation purposes only
