131052 DODGE - F2B-SXR-010

Brand - DODGE
Item Number - 131052 DODGE - F2B-SXR-010
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 2-Bolt Flange Bearings)
Series - 203
Shaft Size (inch) - 0.625
Description - F2B-SXR-010
Part Number (No Lube/Sealed for Life) - 131079
Description (No Lube/Sealed for Life) - F2B-SXR-010-NL
Description (With Flingers) - F2B-SXR-010-FF
Weight (lbs) - 0.8

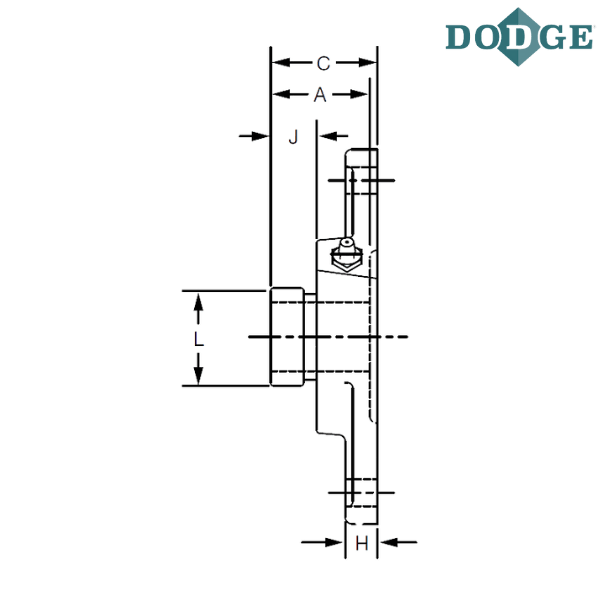

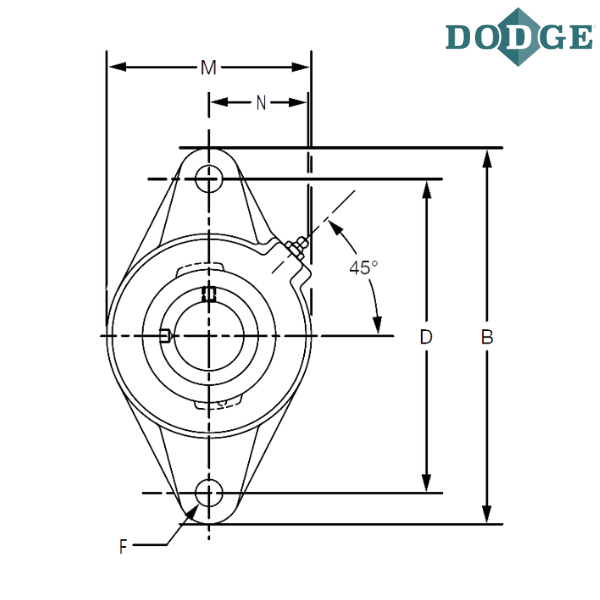

Length Through Bore (A) inch - 1.47
Overall Length (B) inch - 3.88
Thickness (C) inch - 1.45
Bolt Center to Center Length (D) inch - 3
F-Bolt Diameter (inch) - 0.375
H (inch) - 0.38
J (inch) - 0.61
L (inch) - 1.13
Overall Width (M) inch - 2.13
N (inch) - 1.13
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2 bolt flange
SXR - Wide inner ring, normal duty, Eccentric locking Collar

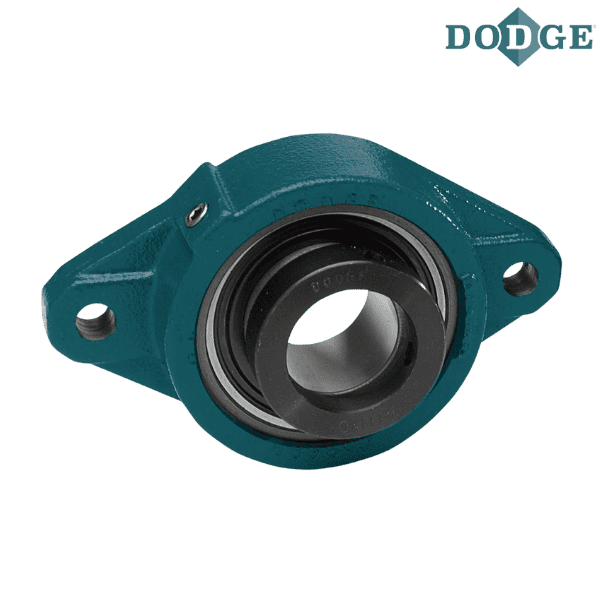

** Images are for representation purposes only
