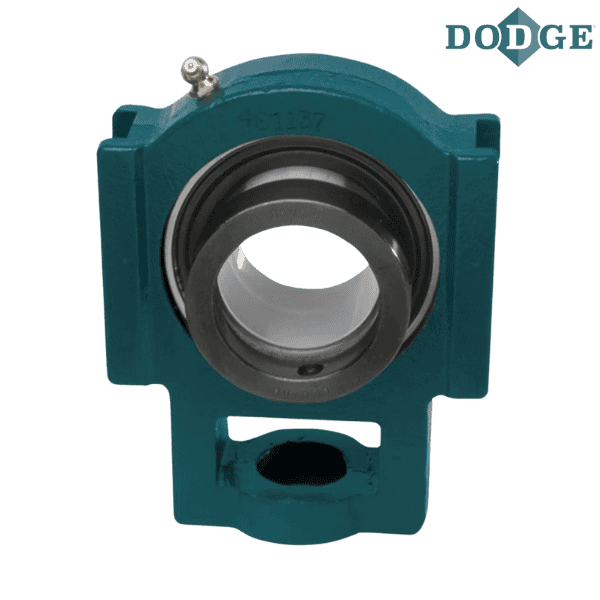

130854 DODGE - WSTU-SXR-75M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 130854 DODGE - WSTU-SXR-75M
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Wide Slot Take-Up Bearings)
Series - 215
Shaft Size (mm) - 75
Description - WSTU-SXR-75M
Description (No Lube/Sealed for Life) - WSTU-SXR-75M-NL
Weight (kg) - 9.6
Take- Up Frame Size - WS515

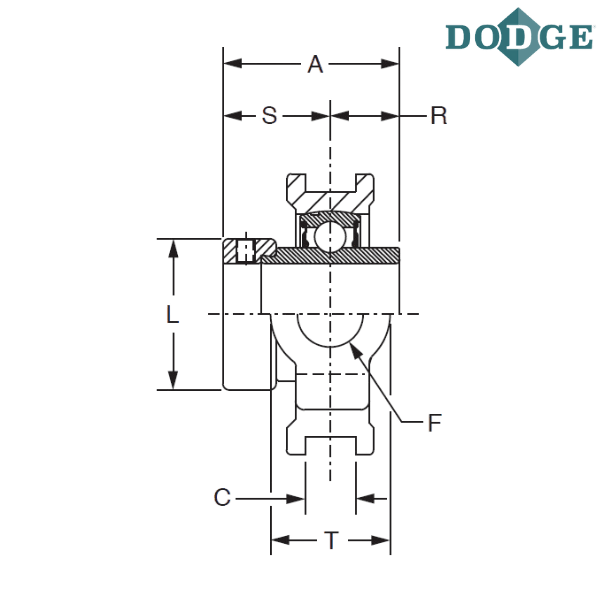

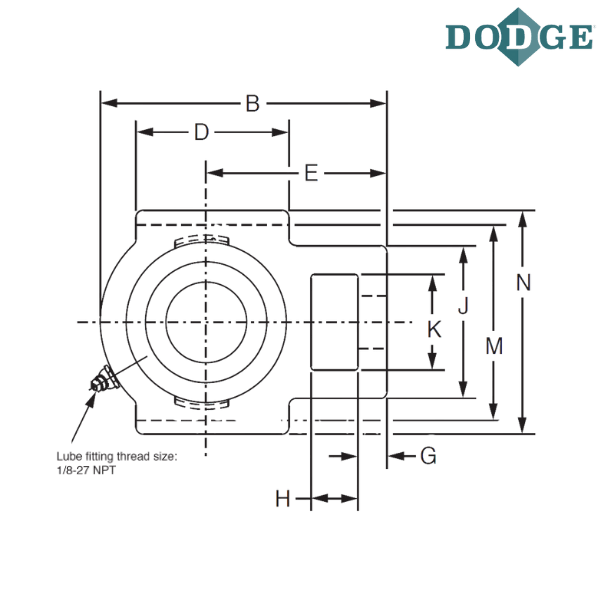

Length Through Bore (A) mm - 76.7
Overall Length (B) mm - 231.9
C (mm) - 27
D (mm) - 120.7
E (mm) - 139.7
F (Screw Diameter) mm - 38.1
G (mm) - 20.6
H (mm) - 31.8
J (mm) - 111.3
K (mm) - 69.9
L (mm) - 101.6
M (mm) - 150.44/151.21
Overall Width (N) mm - 169.9
R (mm) - 21.8
S (mm) - 54.9
T (mm) - 69.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
SXR - Wide inner ring, normal duty, Eccentric locking Collar
M - Metric

** Images are for representation purposes only
