Description
Brand - DODGE
Item Number - 130853 DODGE - WSTU-SXR-60M
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Wide Slot Take-Up Bearings)
Series - 212
Shaft Size (mm) - 60
Description - WSTU-SXR-60M
Description (No Lube/Sealed for Life) - WSTU-SXR-60M-NL
Weight (kg) - 5.9
Take- Up Frame Size - WS502

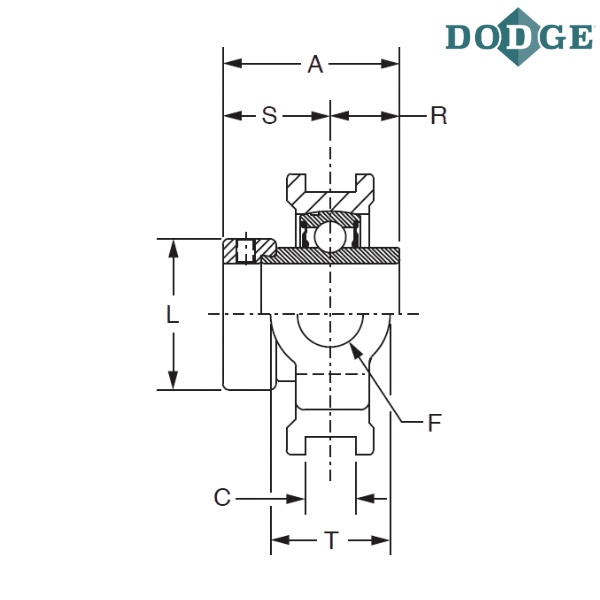

Length Through Bore (A) mm - 69.6

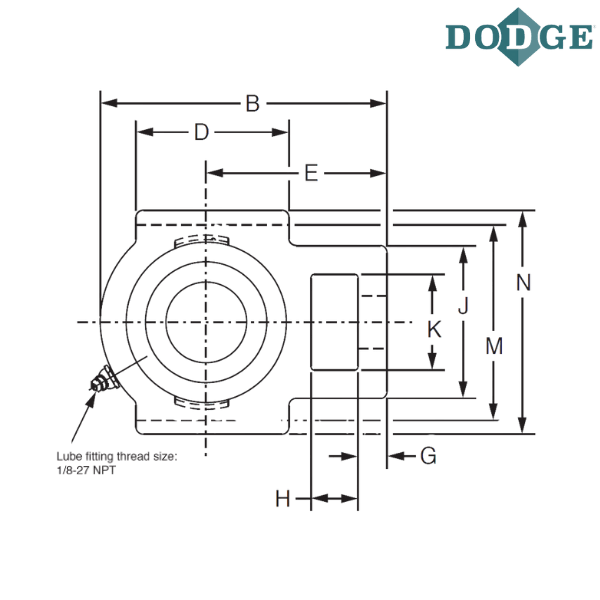

Overall Length (B) mm - 190.5
C (mm) - 27
D (mm) - 101.6
E (mm) - 119.1
F (Screw Diameter) mm - 31.8
G (mm) - 19.1
H (mm) - 31.8
J (mm) - 101.6
K (mm) - 63.5
L (mm) - 84.1
M (mm) - 129.79/130.56
Overall Width (N) mm - 149.4
R (mm) - 22.9
S (mm) - 46.7
T (mm) - 63.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
WSTU - Wide slot take-up
SXR - Wide inner ring, normal duty, Eccentric locking Collar
M - Metric

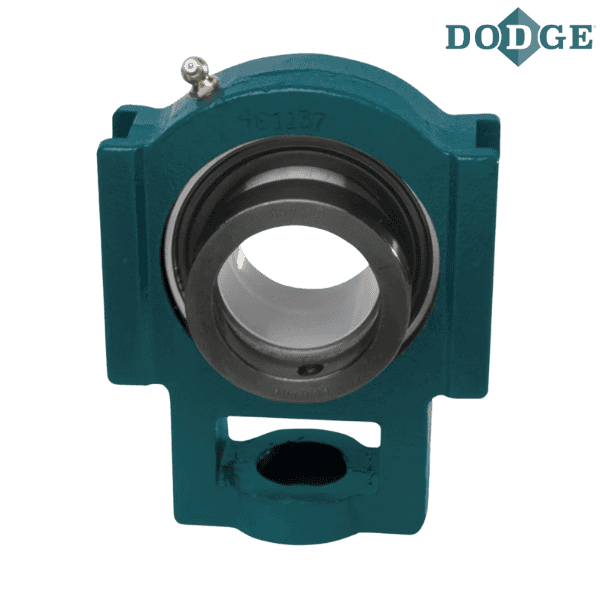

** Images are for representation purposes only
