Description
Brand - DODGE

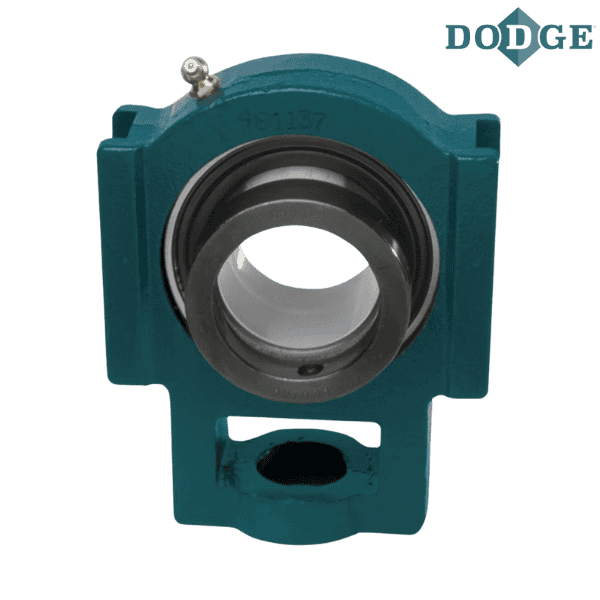

Item Number - 130851 DODGE - WSTU-SXR-50M
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Wide Slot Take-Up Bearings)
Series - 210
Shaft Size (mm) - 50
Description - WSTU-SXR-50M
Description (No Lube/Sealed for Life) - WSTU-SXR-50M-NL
Weight (kg) - 3.1
Take- Up Frame Size - WS400

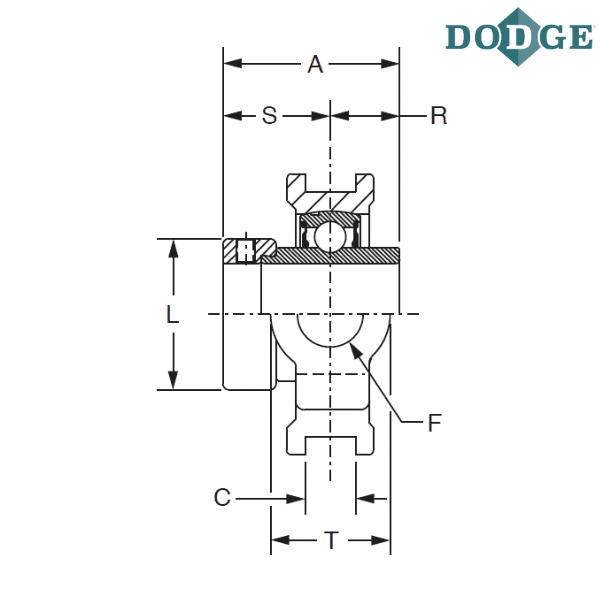

Length Through Bore (A) mm - 57.2

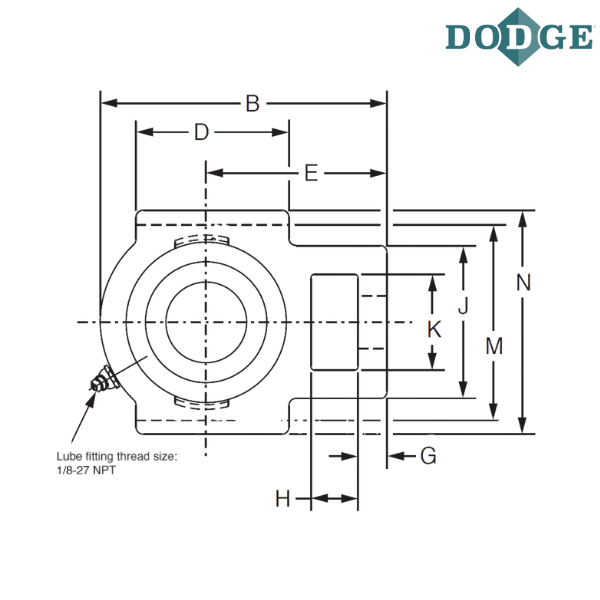

Overall Length (B) mm - 147.8
C (mm) - 17.48
D (mm) - 85.9
E (mm) - 90.4
F (Screw Diameter) mm - 25.4
G (mm) - 16
H (mm) - 19.1
J (mm) - 82.6
K (mm) - 49.3
L (mm) - 69.9
M (mm) - 101.22/101.98
Overall Width (N) mm - 120.7
R (mm) - 19.1
S (mm) - 38.1
T (mm) - 49.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
WSTU - Wide slot take-up
SXR - Wide inner ring, normal duty, Eccentric locking Collar
M - Metric
** Images are for representation purposes only
