130845 DODGE - WSTU-SXR-20M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 130845 DODGE - WSTU-SXR-20M
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Wide Slot Take-Up Bearings)
Series - 204
Shaft Size (mm) - 20
Description - WSTU-SXR-20M
Description (No Lube/Sealed for Life) - WSTU-SXR-20M-NL
Weight (kg) - 1
Take- Up Frame Size - WS300

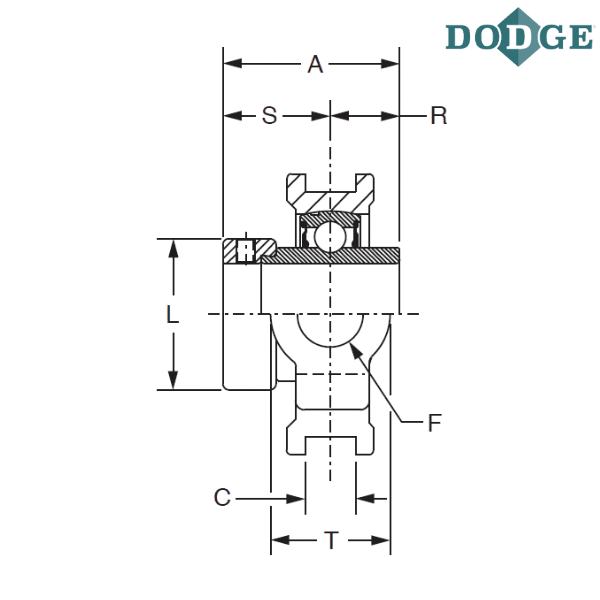

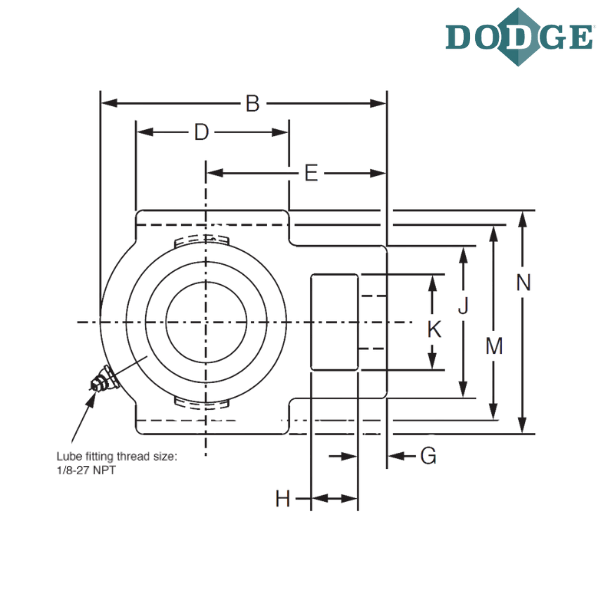

Length Through Bore (A) mm - 39.4
Overall Length (B) mm - 93.7
C (mm) - 13.49
D (mm) - 50.8
E (mm) - 60.5
F (Screw Diameter) mm - 15.9
G (mm) - 9.7
H (mm) - 16
J (mm) - 50.8
K (mm) - 31.8
L (mm) - 33.3
M (mm) - 75.82/76.58
Overall Width (N) mm - 92.2
R (mm) - 12.7
S (mm) - 26.7
T (mm) - 35.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
SXR - Wide inner ring, normal duty, Eccentric locking Collar
M - Metric

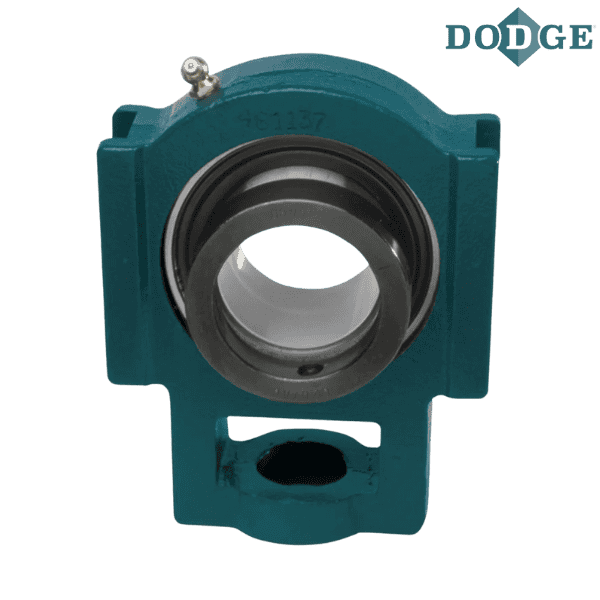

** Images are for representation purposes only
