130840 DODGE - FC-SXR-40M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 130840 DODGE - FC-SXR-40M
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Piloted Flange Bearings)
Series - 208
Shaft Size (mm) - 40mm
Description - FC-SXR-40M
Weight (kg) - 2.2

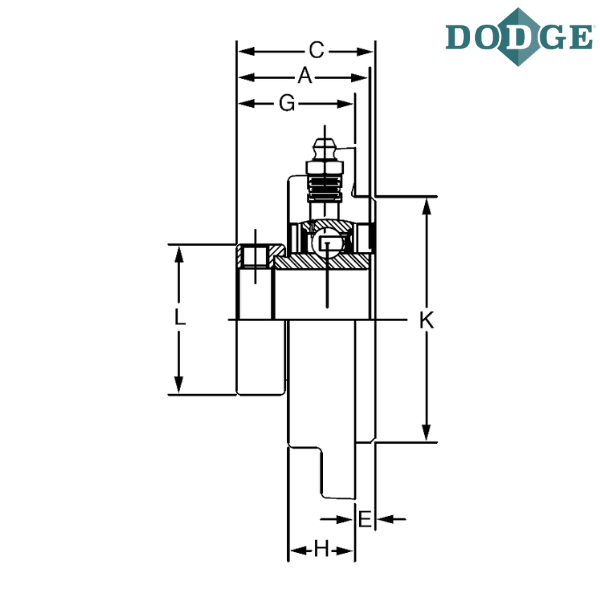

Length Through Bore (A) mm - 53.8
Overall Length (B) mm - 133.4
Thickness (C) mm - 54.6
Bolt Circle (D) mm - 111.3
Pilot Depth (E) mm - 11.2
F-Bolt Diameter - M12
G (mm) - 43.7
H (mm) - 22.6
Pilot Diameter (K) mm - 92.08/92.02
L (mm) - 60.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge
SXR - Wide inner ring, normal duty, Eccentric locking Collar
M - Metric

** Images are for representation purposes only
