130839 DODGE - FC-SXR-35M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 130839 DODGE - FC-SXR-35M
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Piloted Flange Bearings)
Series - 207
Shaft Size (mm) - 35mm
Description - FC-SXR-35M
Weight (kg) - 1.9

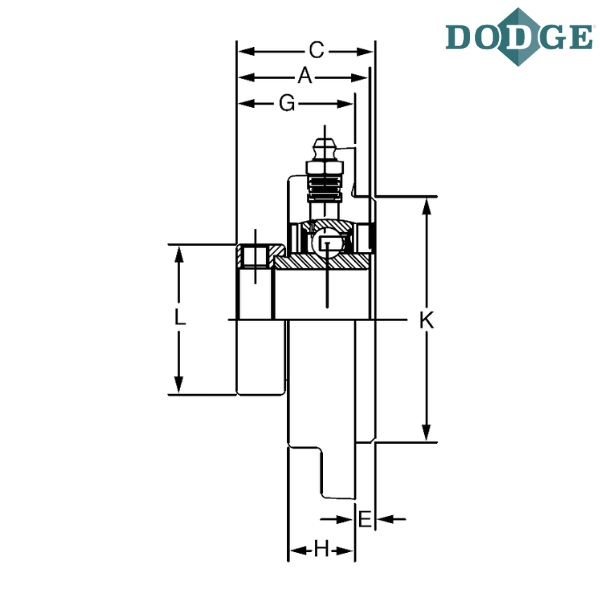

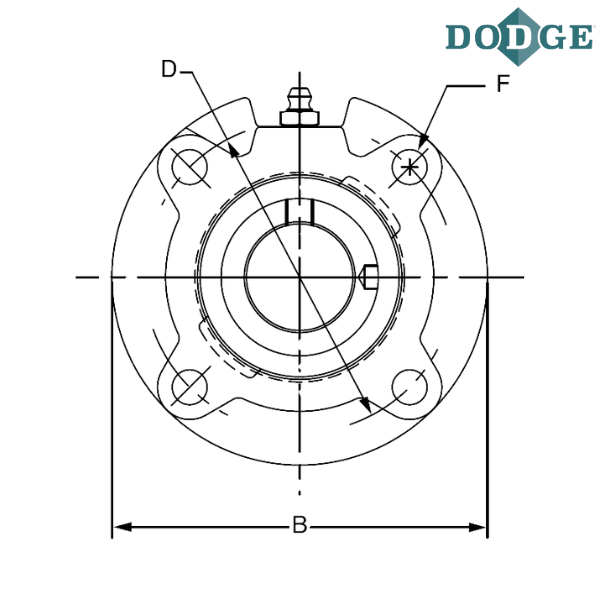

Length Through Bore (A) mm - 49.5
Overall Length (B) mm - 127
Thickness (C) mm - 51.1
Bolt Circle (D) mm - 104.9
Pilot Depth (E) mm - 9.7
F-Bolt Diameter - M10
G (mm) - 41.4
H (mm) - 21.3
Pilot Diameter (K) mm - 85.73/85.67
L (mm) - 54.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge
SXR - Wide inner ring, normal duty, Eccentric locking Collar
M - Metric

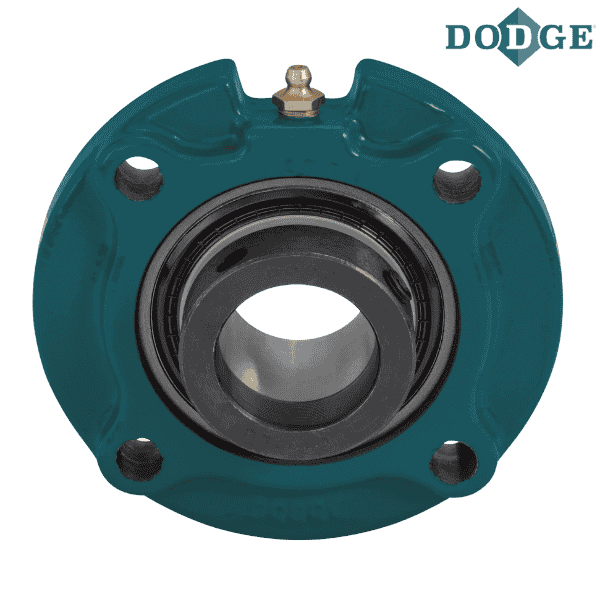

** Images are for representation purposes only
