Description
Brand - DODGE
Item Number - 130838 DODGE - FC-SXR-30M
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Piloted Flange Bearings)
Series - 206
Shaft Size (mm) - 30
Description - FC-SXR-30M
Weight (kg) - 1.4

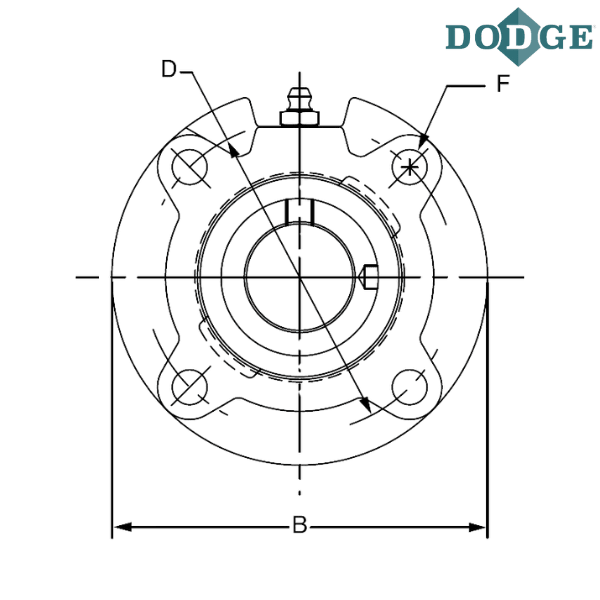

Length Through Bore (A) mm - 45
Overall Length (B) mm - 111.3
Thickness (C) mm - 45.2
Bolt Circle (D) mm - 92.2
Pilot Depth (E) mm - 6.4
F-Bolt Diameter - M10
G (mm) - 38.9
H (mm) - 20.6
Pilot Diameter (K) mm - 76.20/76.15
L (mm) - 44.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
FC - Flanged cartridge
SXR - Wide inner ring, normal duty, Eccentric locking Collar
M - Metric
** Images are for representation purposes only
