130837 DODGE - F2BZ-SXR-50M

Brand - DODGE
Item Number - 130837 DODGE - F2BZ-SXR-50M
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 2-Bolt Piloted Flange Bearings)
Series - 210
Shaft Size (mm) - 50
Description - F2BZ-SXR-50M
Weight (kg) - 2.1

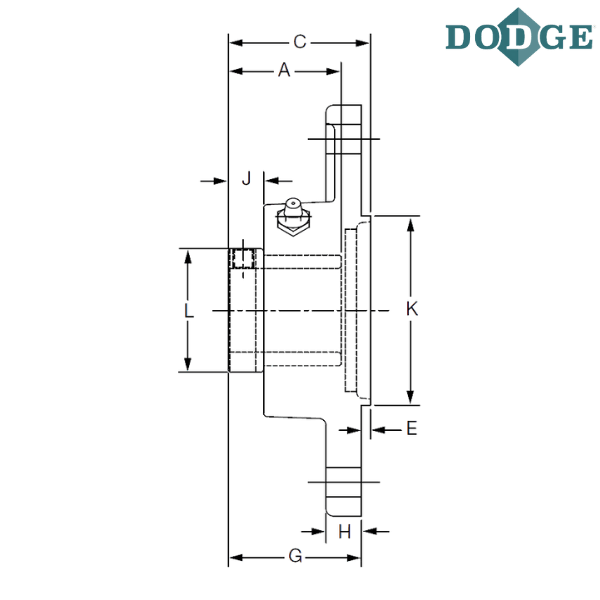

Length Through Bore (A) mm - 57.2

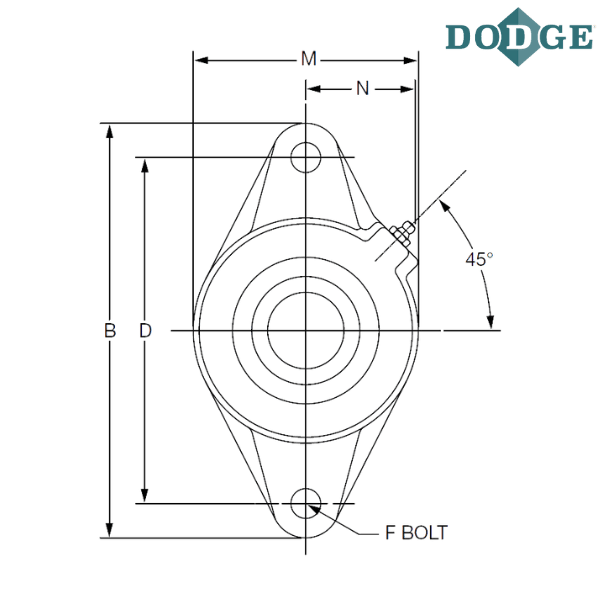

Overall Length (B) mm - 189
Thickness (C) mm - 63.2
Bolt Center to Center Length (D) mm - 157.2
Pilot Depth (E) mm - 4.1
F-Bolt Diameter - M16
G (mm) - 59.2
H (mm) - 16
J (mm) - 21.8
Pilot Diameter (K) mm - 105.00/104.95
L (mm) - 69.9
M (mm) - 115.8
N (mm) - 51.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2BZ - 2 bolt flange with pilot machined on the back side
SXR - Wide inner ring, normal duty, Eccentric locking Collar
M - Metric

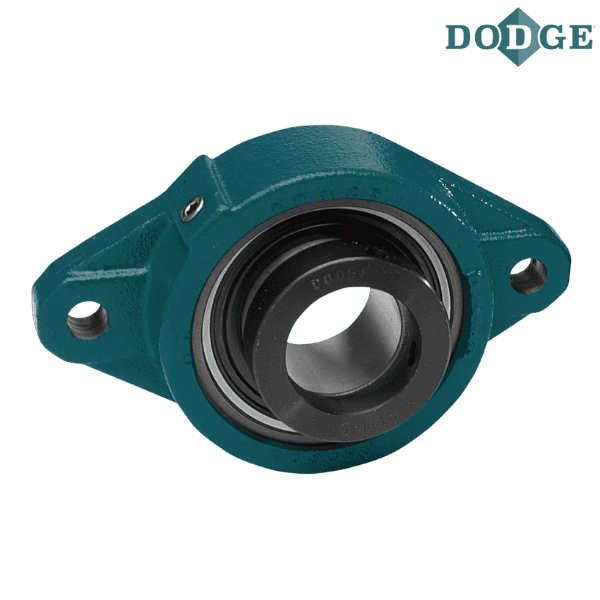

** Images are for representation purposes only
