130836 DODGE - F2BZ-SXR-45M

Brand - DODGE
Item Number - 130836 DODGE - F2BZ-SXR-45M
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 2-Bolt Piloted Flange Bearings)
Series - 209
Shaft Size (mm) - 45
Description - F2BZ-SXR-45M
Weight (kg) - 2

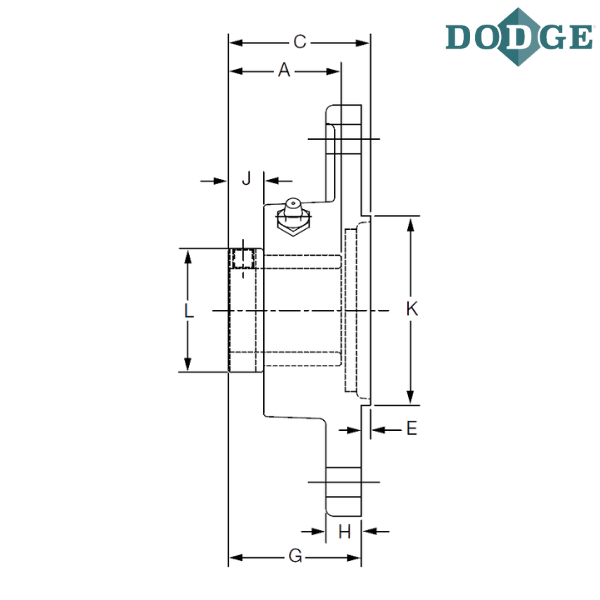

Length Through Bore (A) mm - 54.1

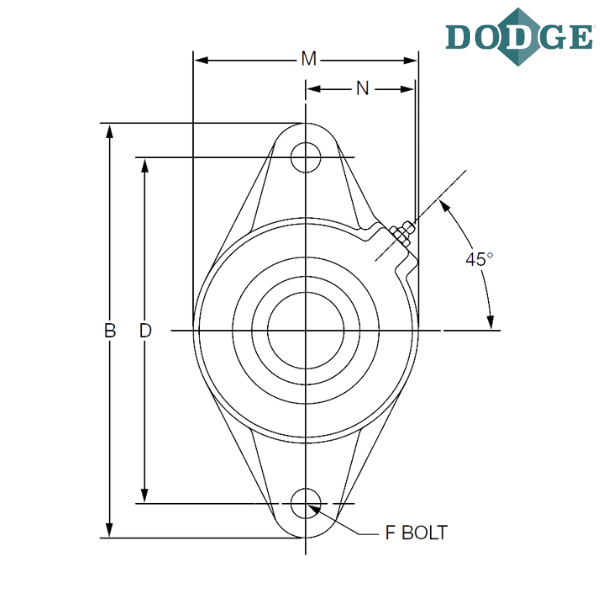

Overall Length (B) mm - 179.3
Thickness (C) mm - 59.4
Bolt Center to Center Length (D) mm - 148.3
Pilot Depth (E) mm - 4.1
F-Bolt Diameter - M14
G (mm) - 55.4
H (mm) - 16
J (mm) - 19.6
Pilot Diameter (K) mm - 105.00/104.95
L (mm) - 63.5
M (mm) - 111.3
N (mm) - 48.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2BZ - 2 bolt flange with pilot machined on the back side
SXR - Wide inner ring, normal duty, Eccentric locking Collar
M - Metric

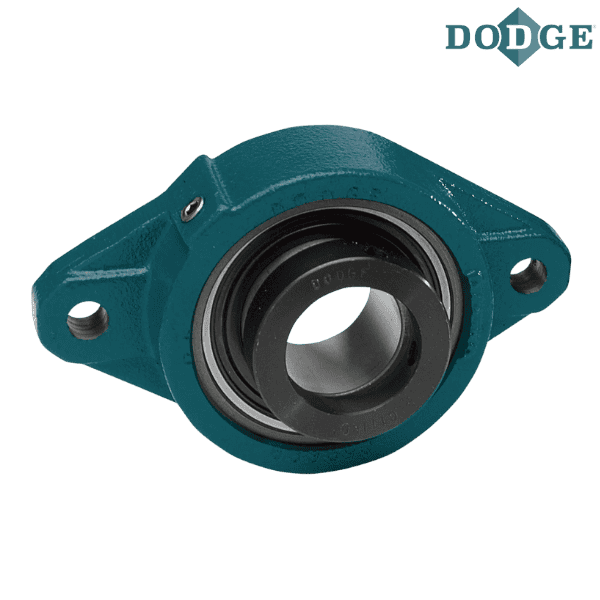

** Images are for representation purposes only
