Description
Brand - DODGE
Item Number - 130835 DODGE - F2BZ-SXR-40M
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 2-Bolt Piloted Flange Bearings)
Series - 208
Shaft Size (mm) - 40
Description - F2BZ-SXR-40M
Weight (kg) - 1.9

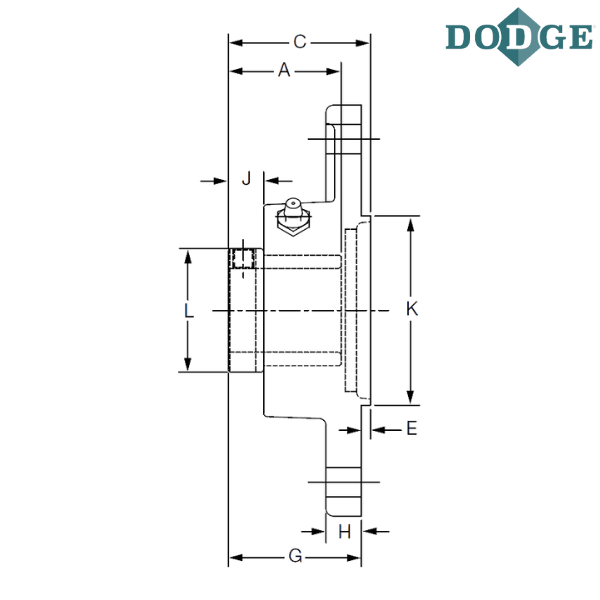

Length Through Bore (A) mm - 53.8

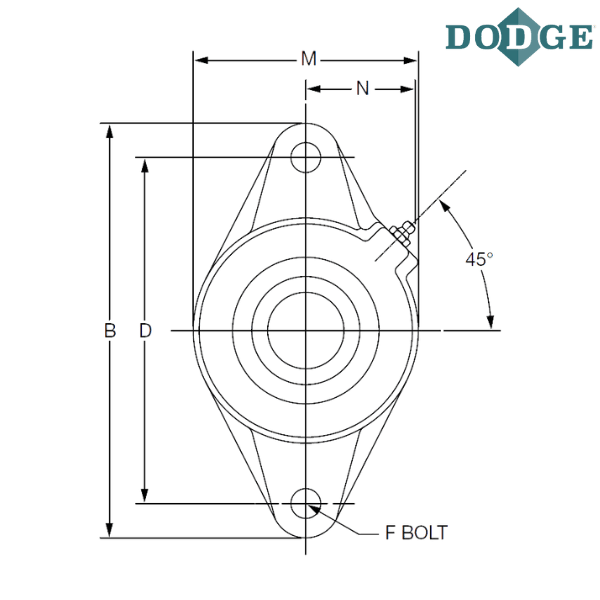

Overall Length (B) mm - 171.5
Thickness (C) mm - 58.7
Bolt Center to Center Length (D) mm - 143.8
Pilot Depth (E) mm - 4.1
F-Bolt Diameter - M12
G (mm) - 54.6
H (mm) - 14.2
J (mm) - 20.6
Pilot Diameter (K) mm - 100.00/99.95
L (mm) - 60.5
M (mm) - 104.9
N (mm) - 46.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2BZ - 2 bolt flange with pilot machined on the back side
SXR - Wide inner ring, normal duty, Eccentric locking Collar
M - Metric

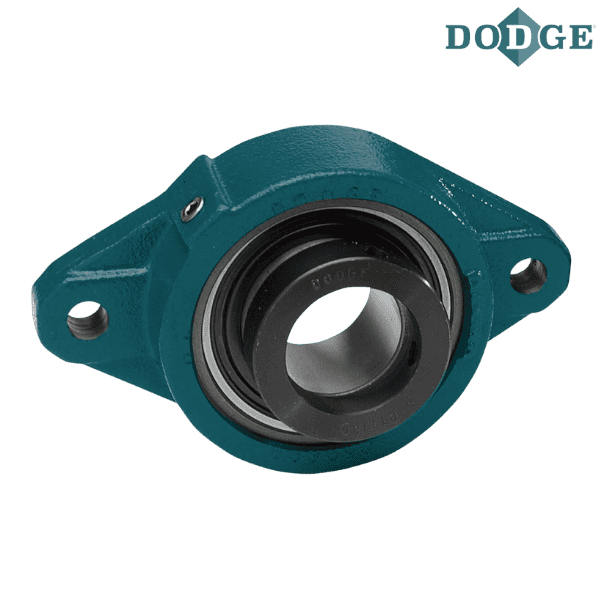

** Images are for representation purposes only
