130834 DODGE - F2BZ-SXR-35M

Brand - DODGE
Item Number - 130834 DODGE - F2BZ-SXR-35M
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 2-Bolt Piloted Flange Bearings)
Series - 207
Shaft Size (mm) - 35
Description - F2BZ-SXR-35M
Weight (kg) - 1.3

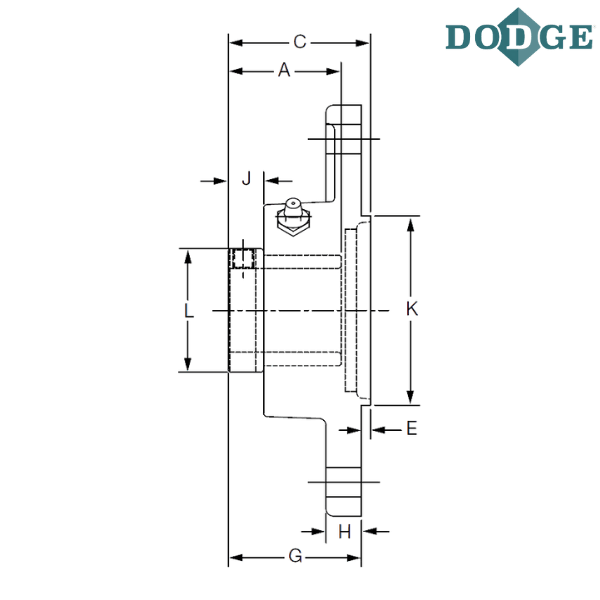

Length Through Bore (A) mm - 49.5

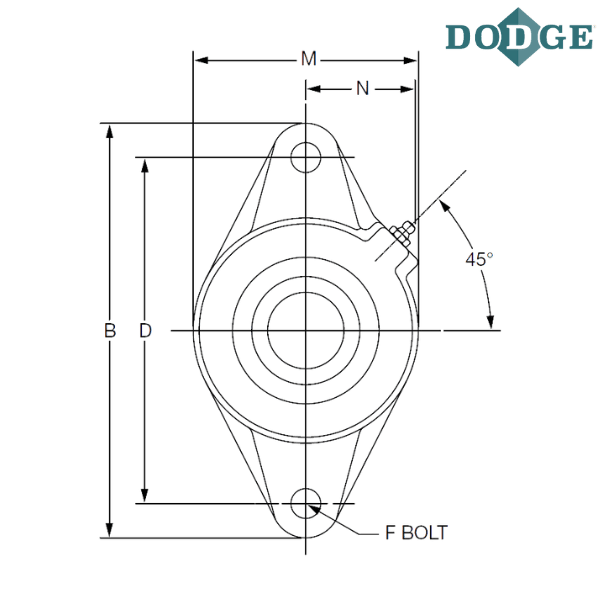

Overall Length (B) mm - 155.7
Thickness (C) mm - 54.4
Bolt Center to Center Length (D) mm - 130
Pilot Depth (E) mm - 4.1
F-Bolt Diameter - M12
G (mm) - 50.5
H (mm) - 14.2
J (mm) - 19.6
Pilot Diameter (K) mm - 89.99/89.94
L (mm) - 54.1
M (mm) - 95.3
N (mm) - 46.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2BZ - 2 bolt flange with pilot machined on the back side
SXR - Wide inner ring, normal duty, Eccentric locking Collar
M - Metric

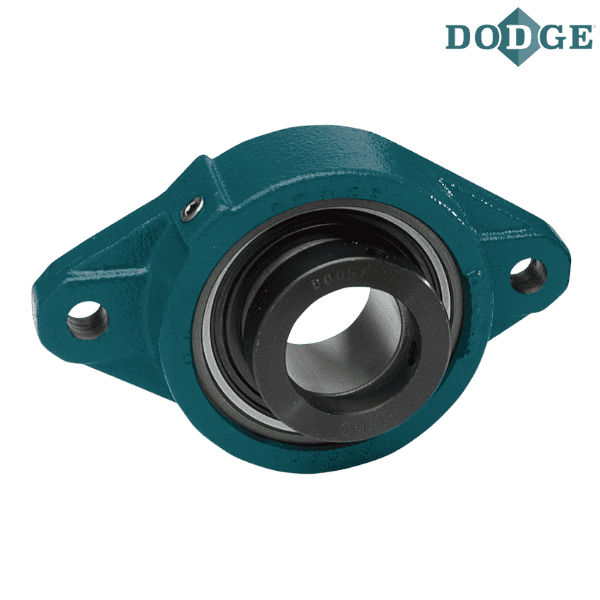

** Images are for representation purposes only
