130831 DODGE - F2BZ-SXR-20M

Brand - DODGE
Item Number - 130831 DODGE - F2BZ-SXR-20M
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 2-Bolt Piloted Flange Bearings)
Series - 204
Shaft Size (mm) - 20
Description - F2BZ-SXR-20M
Weight (kg) - 0.6

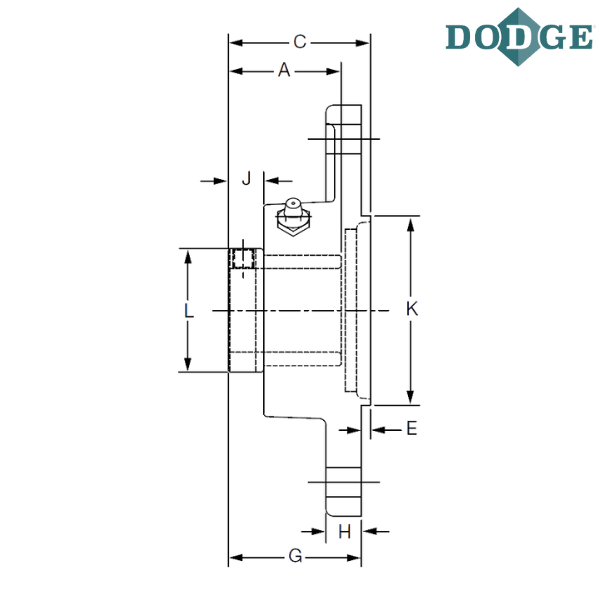

Length Through Bore (A) mm - 39.4

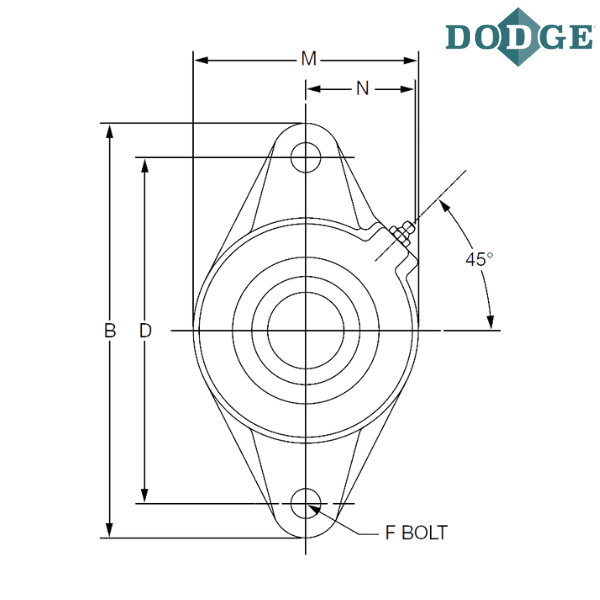

Overall Length (B) mm - 112
Thickness (C) mm - 45.7
Bolt Center to Center Length (D) mm - 89.7
Pilot Depth (E) mm - 3.6
F-Bolt Diameter - M10
G (mm) - 42.2
H (mm) - 12.7
J (mm) - 17.3
Pilot Diameter (K) mm - 54.99/54.94
L (mm) - 33.3
M (mm) - 60.5
N (mm) - 38.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2BZ - 2 bolt flange with pilot machined on the back side
SXR - Wide inner ring, normal duty, Eccentric locking Collar
M - Metric

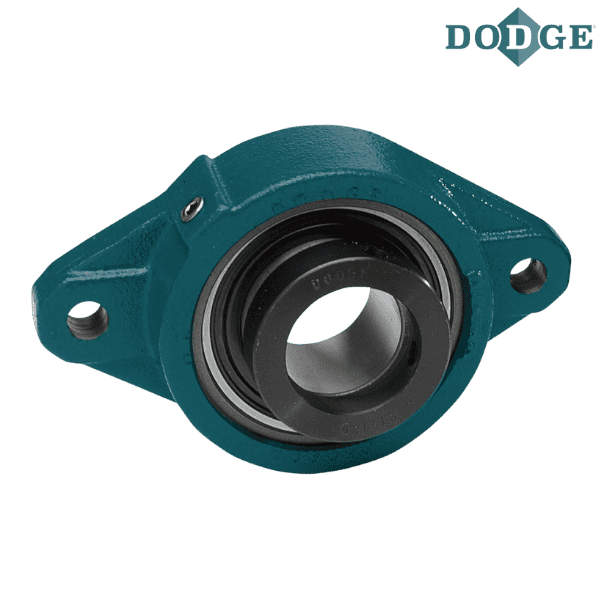

** Images are for representation purposes only
