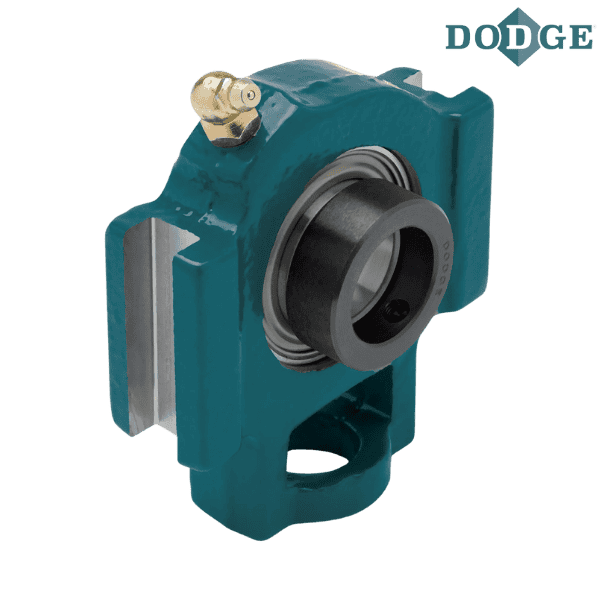

130799 DODGE - WSTU-SXV-50M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 130799 DODGE - WSTU-SXV-50M
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty Wide Slot Take-Up Bearings)
Series - 210
Shaft Size (mm) - 50
Description - WSTU-SXV-50M
Weight (kg) - 2.2
Take- Up Frame Size - WS400

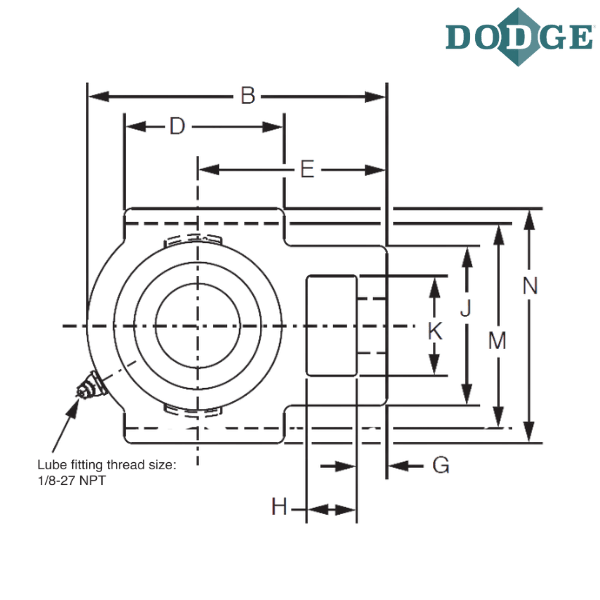

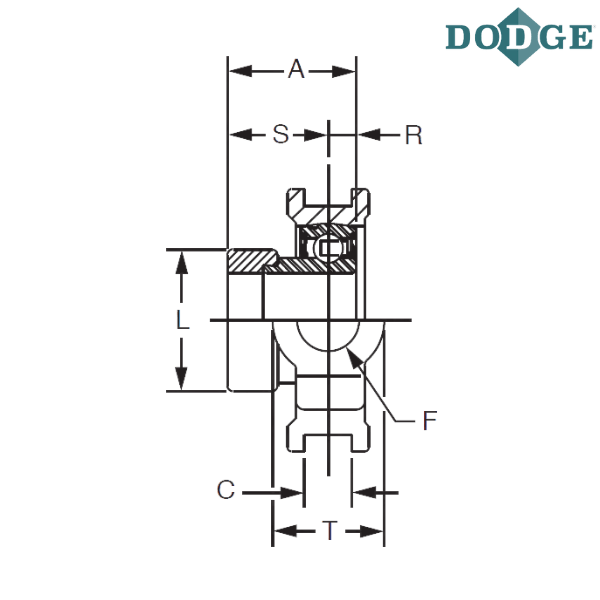

Length Through Bore (A) mm - 43.6
Overall Length (B) mm - 147.8
C (mm) - 17.48
D (mm) - 85.9
E (mm) - 90.4
F (Screw Diameter) mm - 25.4
G (mm) - 16
H (mm) - 19.1
J (mm) - 82.6
K (mm) - 49.3
L (mm) - 63.5
M (mm) - 101.22/101.98
Overall Width (N) mm - 120.7
R (mm) - 11
S (mm) - 32.7
T (mm) - 49.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
M - Metric

** Images are for representation purposes only
