Description
Brand - DODGE
Item Number - 130793 DODGE - WSTU-SXV-20M
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty Wide Slot Take-Up Bearings)
Series - 204
Shaft Size (mm) - 20
Description - WSTU-SXV-20M
Weight (kg) - 0.5
Take- Up Frame Size - WS300

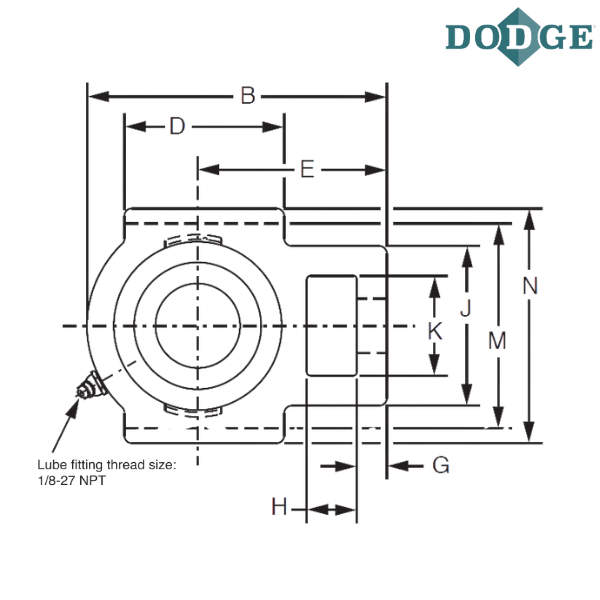

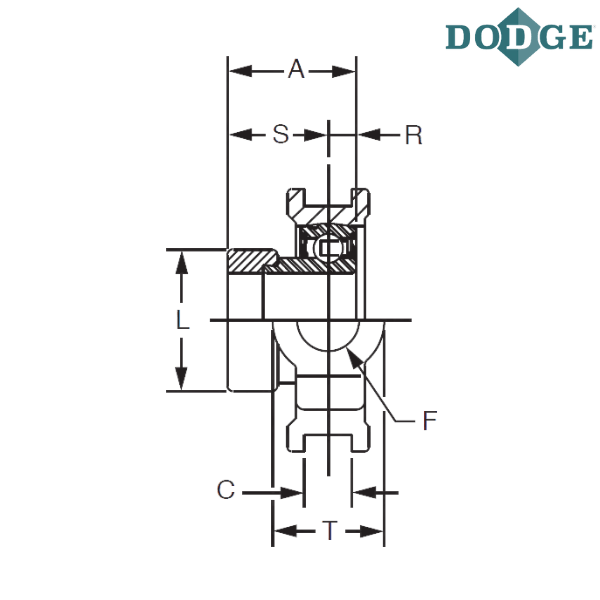

Length Through Bore (A) mm - 31
Overall Length (B) mm - 93.7
C (mm) - 13.49
D (mm) - 50.8
E (mm) - 60.5
F (Screw Diameter) mm - 15.9
G (mm) - 9.7
H (mm) - 16
J (mm) - 50.8
K (mm) - 31.8
L (mm) - 33.3
M (mm) - 75.82/76.58
Overall Width (N) mm - 92.2
R (mm) - 7.6
S (mm) - 23.4
T (mm) - 35.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
WSTU - Wide slot take-up
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
M - Metric

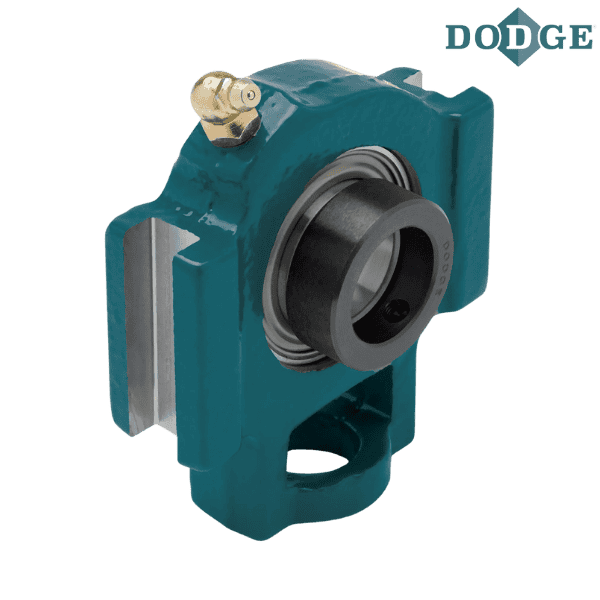

** Images are for representation purposes only
