130788 DODGE - FC-SXV-30M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE

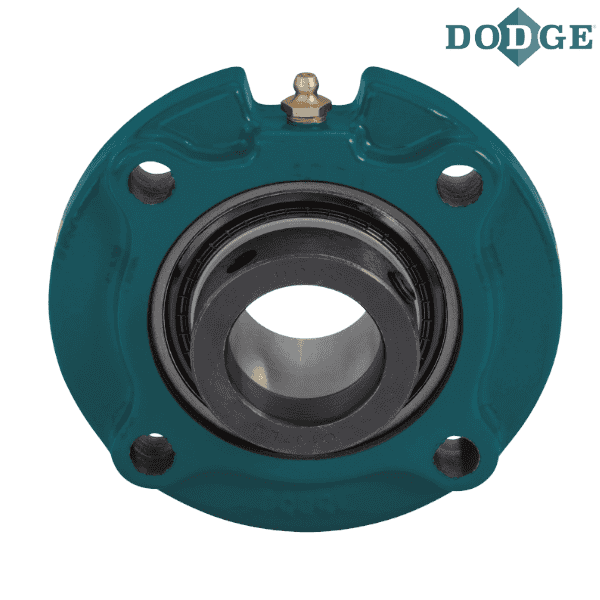

Item Number - 130788 DODGE - FC-SXV-30M
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty Piloted Bearings)
Series - 206
Shaft Size (mm) - 30
Description - FC-SXV-30M
Weight (kg) - 1.3

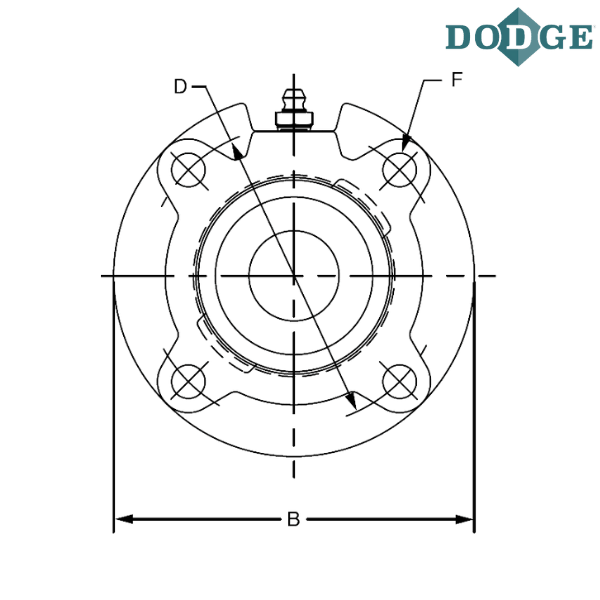

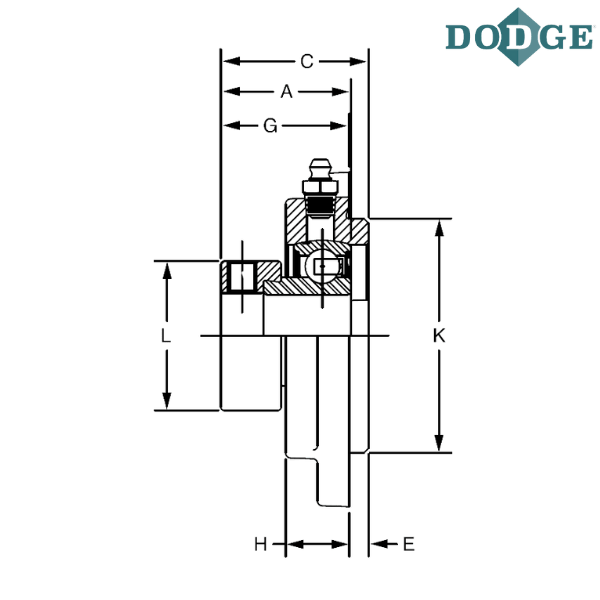

Length Through Bore (A) mm - 35.8
Overall Length (B) mm - 111.3
Thickness (C) mm - 41.7
Bolt Circle (D) mm - 92.2
Pilot Depth (E) mm - 6.4
F-Bolt Diameter - M10
G (mm) - 35.3
H (mm) - 20.6
Pilot Diameter (K) mm - 76.20/76.15
L (mm) - 44.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
M - Metric

** Images are for representation purposes only
