Description
Brand - DODGE
Item Number - 130783 DODGE - F2BZ-SXV-30M
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty 2-Bolt Piloted Flange Bearings)
Series - 206
Shaft Size (mm) - 30
Description - F2BZ-SXV-30M
Weight (kg) - 0.9

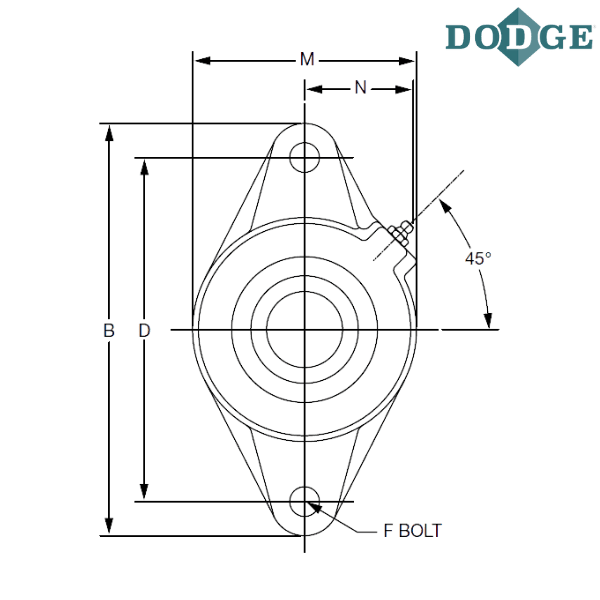

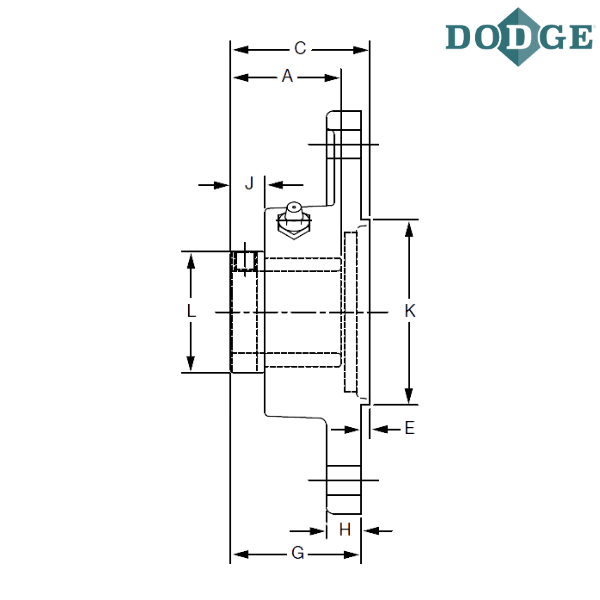

Length Through Bore (A) mm - 35.8
Overall Length (B) mm - 141.2
Thickness (C) mm - 45.5
Bolt Center to Center Length (D) mm - 116.6
Pilot Depth (E) mm - 3
F-Bolt Diameter - M10
G (mm) - 42.4
H (mm) - 12.7
J (mm) - 15.5
Pilot Diameter (K) mm - 80.01/79.96
L (mm) - 44.5
Overall Width (M) mm - 79.5
N (mm) - 39.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2BZ - 2 bolt flange with pilot machined on the back side
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
M - Metric

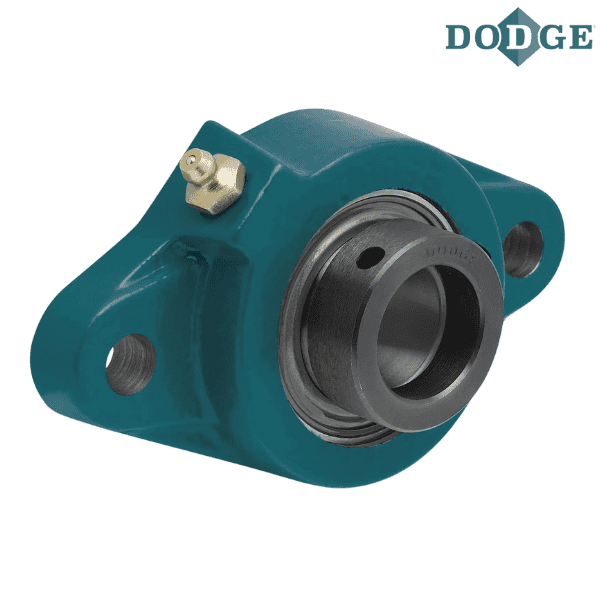

** Images are for representation purposes only
