130782 DODGE - F2BZ-SXV-25M

Brand - DODGE
Item Number - 130782 DODGE - F2BZ-SXV-25M
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty 2-Bolt Piloted Flange Bearings)
Series - 205
Shaft Size (mm) - 25
Description - F2BZ-SXV-25M
Weight (kg) - 0.6

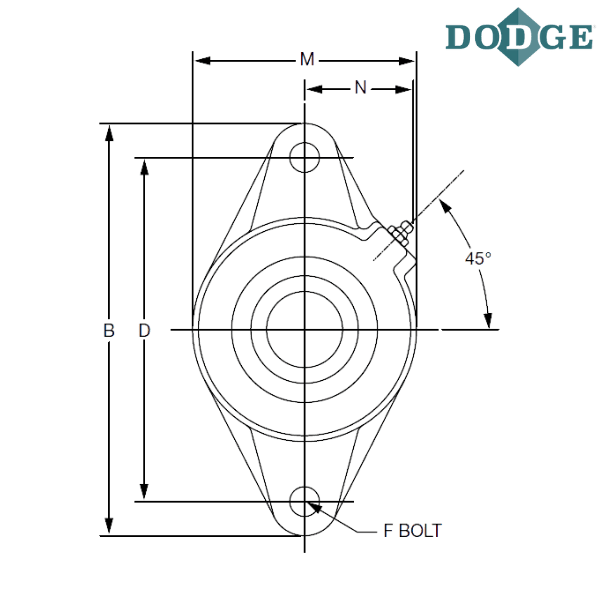

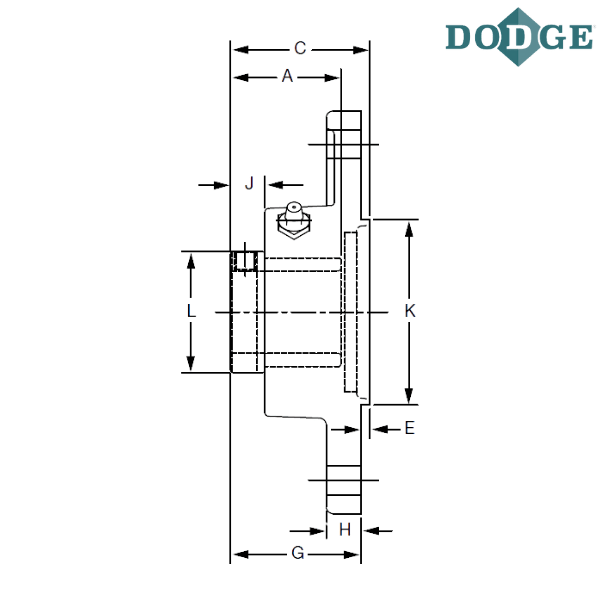

Length Through Bore (A) mm - 31
Overall Length (B) mm - 124
Thickness (C) mm - 41.9
Bolt Center to Center Length (D) mm - 98.8
Pilot Depth (E) mm - 3.6
F-Bolt Diameter - M10
G (mm) - 38.4
H (mm) - 13.2
J (mm) - 14.2
Pilot Diameter (K) mm - 59.99/59.94
L (mm) - 38.1
Overall Width (M) mm - 69.9
N (mm) - 36.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2BZ - 2 bolt flange with pilot machined on the back side
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
M - Metric

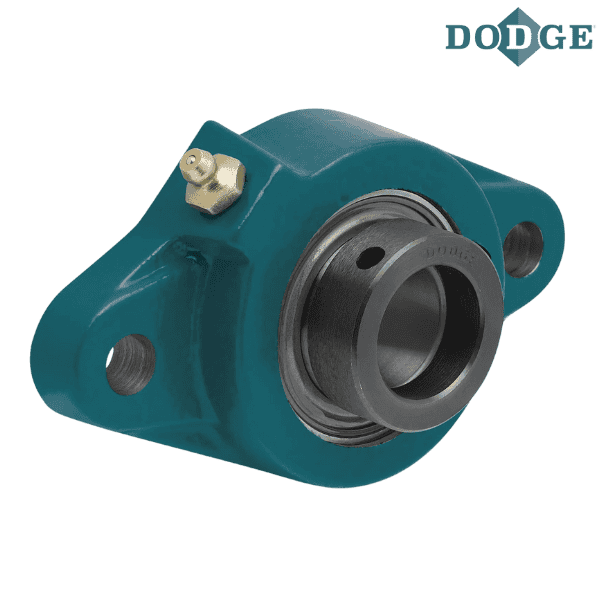

** Images are for representation purposes only
