Description
Brand - DODGE
Item Number - 130780 DODGE - LFT-SXV-35M
Category - Eccentric Collar Ball Bearings (SXV LFT Intermediate Duty 2-Bolt Flange Bearings)
Series - 207
Shaft Size (mm) - 35
Description - LFT-SXV-35M
Description (No-Lube/Sealed for Life) - LFT-SXV-35M-NL
Weight (kg) - 0.8

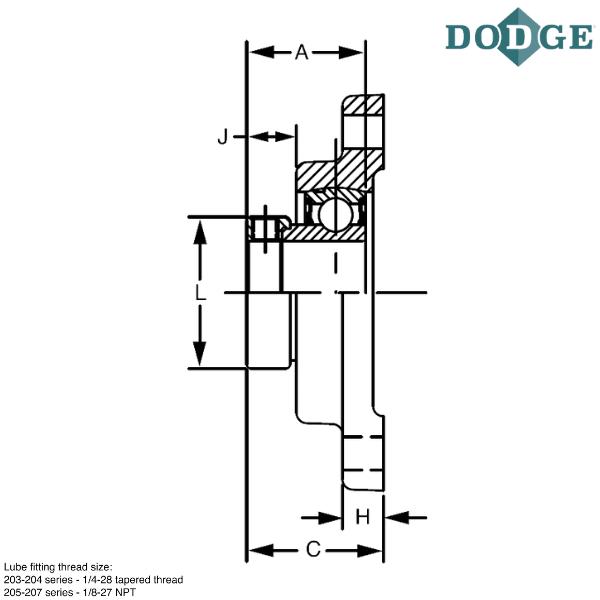

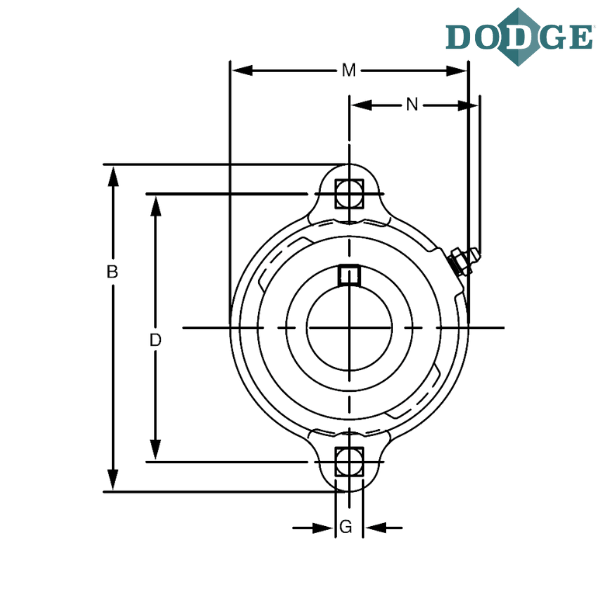

Length Through Bore (A) mm - 38.9
Overall Length (B) mm - 122.4
Thickness (C) mm - 43.7
Bolt Center to Center Length (D) mm - 100.1
G (mm) - 10.4
H (mm) - 12.7
J (mm) - 16.5
L (mm) - 54.1
M (mm) - 88.9
N (mm) - 46.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
LFT - 2 bolt light duty flange
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
M - Metric

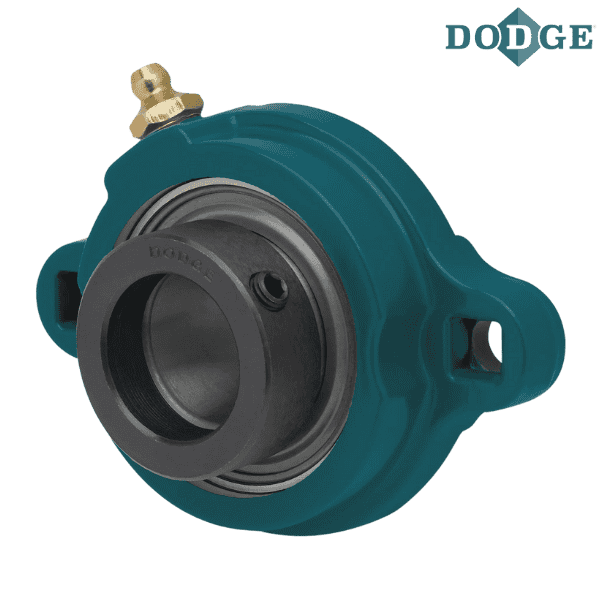

** Images are for representation purposes only
