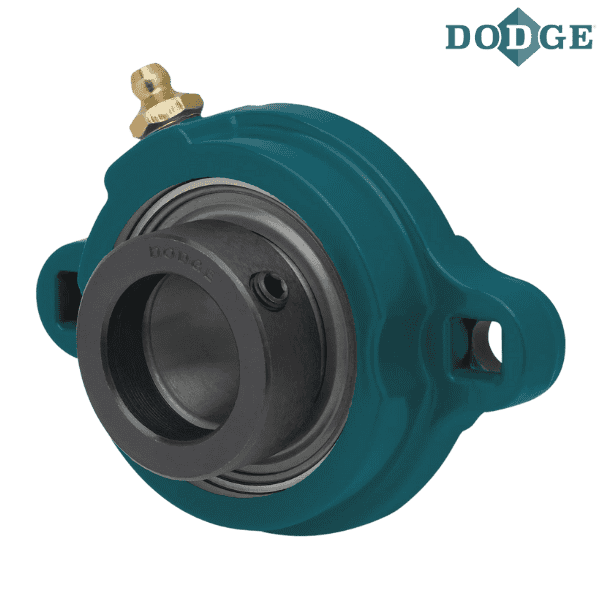

130778 DODGE - LFT-SXV-25M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 130778 DODGE - LFT-SXV-25M
Category - Eccentric Collar Ball Bearings (SXV LFT Intermediate Duty 2-Bolt Flange Bearings)
Series - 205
Shaft Size (mm) - 25
Description - LFT-SXV-25M
Description (No-Lube/Sealed for Life) - LFT-SXV-25M-NL
Weight (kg) - 0.4

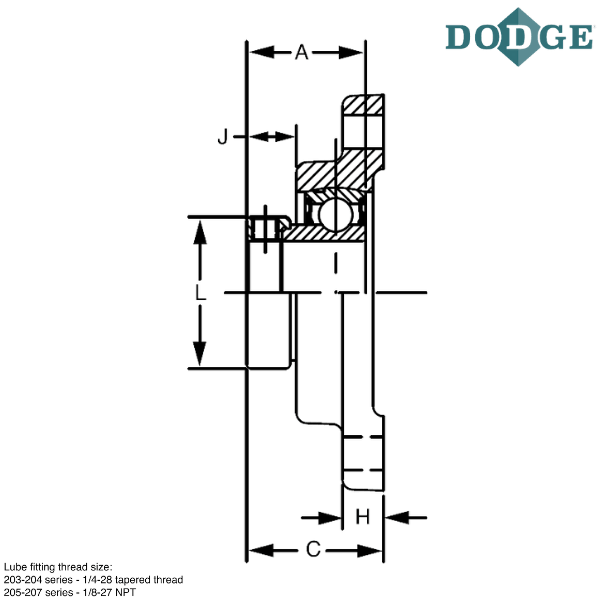

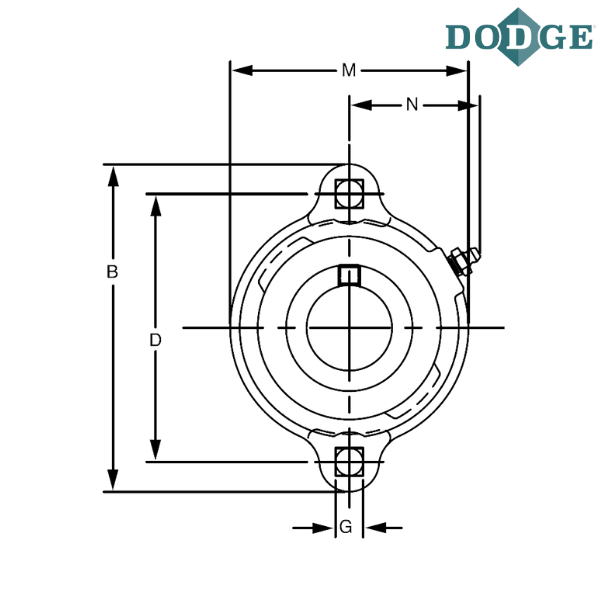

Length Through Bore (A) mm - 31
Overall Length (B) mm - 95.3
Thickness (C) mm - 35.6
Bolt Center to Center Length (D) mm - 76.2
G (mm) - 8.6
H (mm) - 10.7
J (mm) - 13.5
L (mm) - 33.3
M (mm) - 66.8
N (mm) - 36.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
LFT - 2 bolt light duty flange
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
M - Metric

** Images are for representation purposes only
