130777 DODGE - LFT-SXV-20M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 130777 DODGE - LFT-SXV-20M

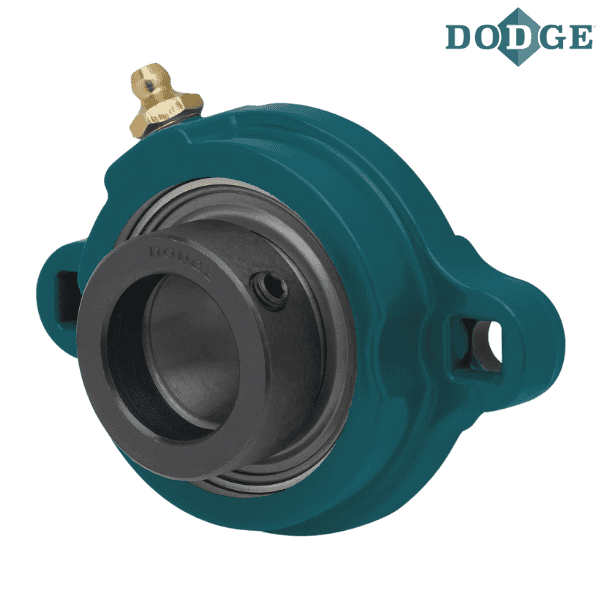

Category - Eccentric Collar Ball Bearings (SXV LFT Intermediate Duty 2-Bolt Flange Bearings)
Series - 204
Shaft Size (mm) - 20
Description - LFT-SXV-20M
Description (No-Lube/Sealed for Life) - LFT-SXV-20M-NL
Weight (kg) - 0.4

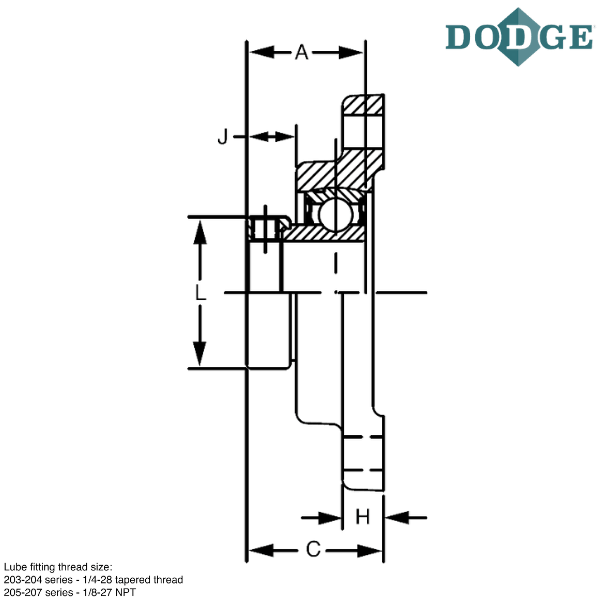

Length Through Bore (A) mm - 31

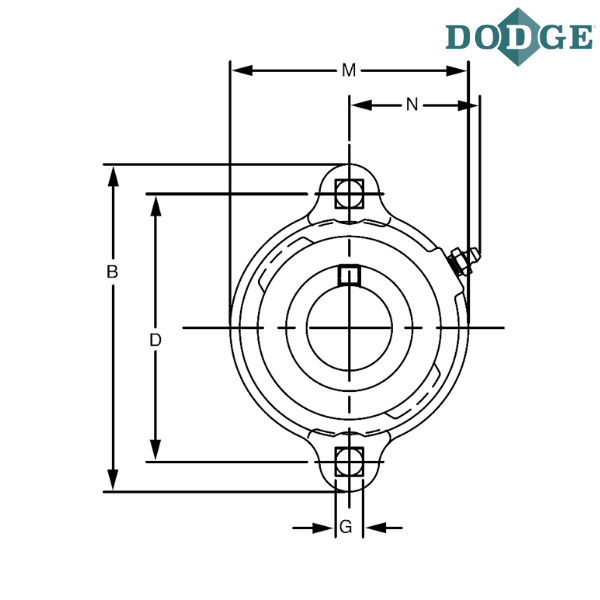

Overall Length (B) mm - 90.4
Thickness (C) mm - 35.8
Bolt Center to Center Length (D) mm - 71.4
G (mm) - 8.6
H (mm) - 10.7
J (mm) - 14.2
L (mm) - 33.3
M (mm) - 60.5
N (mm) - 34
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
LFT - 2 bolt light duty flange
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
M - Metric

** Images are for representation purposes only
