Description
Brand - DODGE

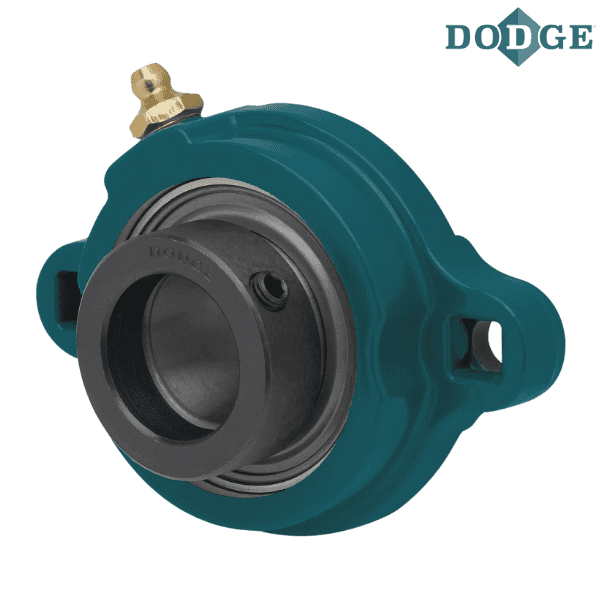

Item Number - 130776 DODGE - LFT-SXV-17M
Category - Eccentric Collar Ball Bearings (SXV LFT Intermediate Duty 2-Bolt Flange Bearings)
Series - 203
Shaft Size (mm) - 17
Description - LFT-SXV-17M
Description (No-Lube/Sealed for Life) - LFT-SXV-17M-NL
Weight (kg) - 0.3

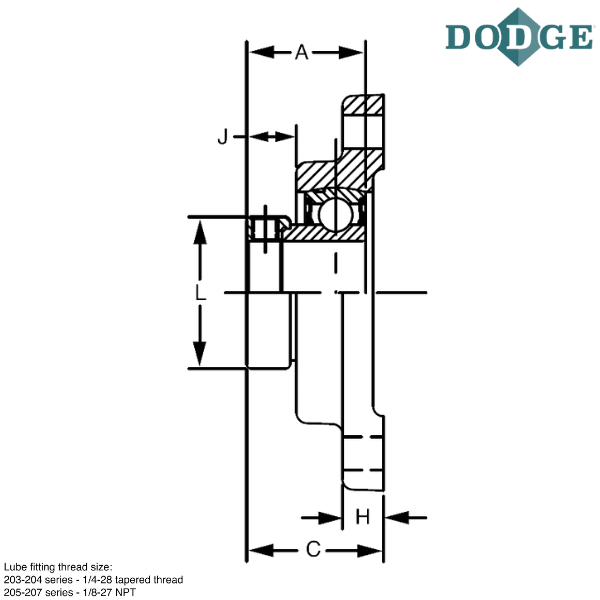

Length Through Bore (A) mm - 28.7

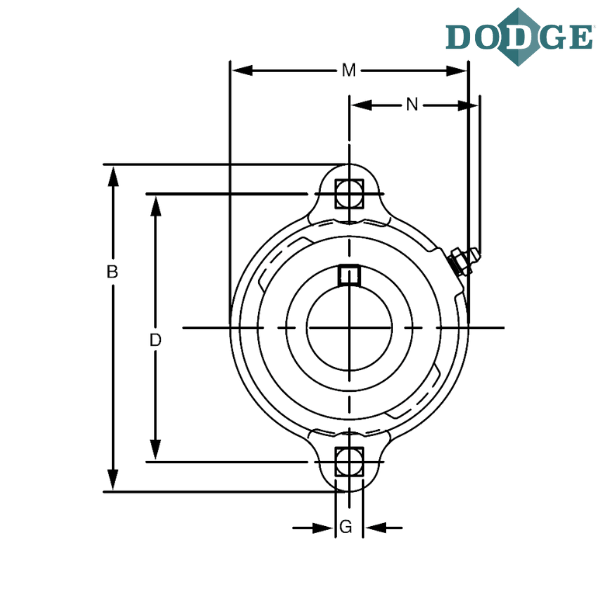

Overall Length (B) mm - 81
Thickness (C) mm - 32.5
Bolt Center to Center Length (D) mm - 63.5
G (mm) - 7.1
H (mm) - 9.7
J (mm) - 14.2
L (mm) - 28.7
M (mm) - 54.1
N (mm) - 31.2
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
LFT - 2 bolt light duty flange
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
M - Metric
** Images are for representation purposes only
