Description
Brand - DODGE
Item Number - 130773 DODGE - TB-SXV-40M
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty Tapped Base Pillow Blocks)
Series - 208
Shaft Size (mm) - 40
Description - TB-SXV-40M
Weight (kg) - 1.8

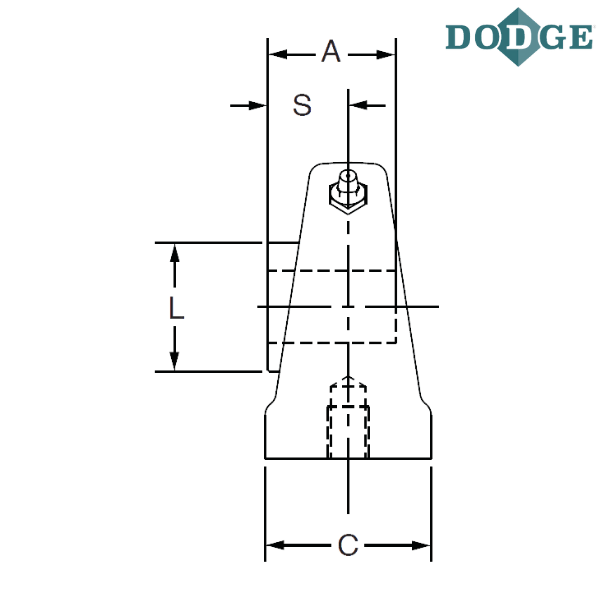

Length Through Bore (A) mm - 43.6

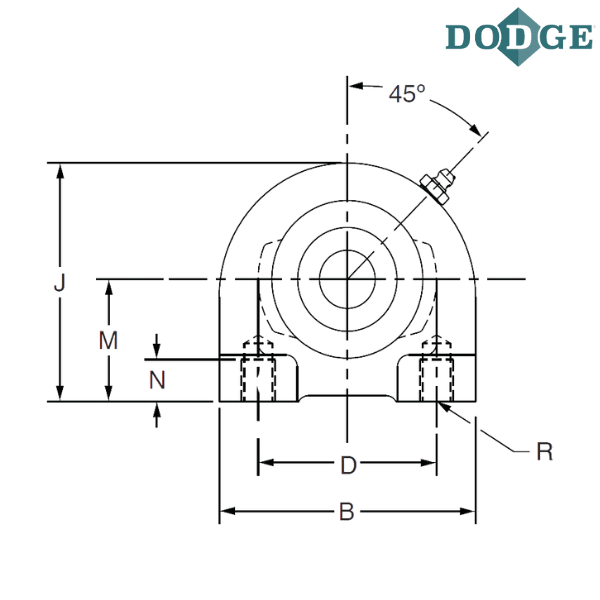

Overall Length (B) mm - 117.6
Width (C) mm - 47.8
Bolt Center to Center Length (D) mm - 88.9
Overall Height (J) mm - 100.1
L (mm) - 60.5
Base to Center Height (M) mm - 49.2
Minimum Tap Depth (N) mm - 19.1
Bolt Hole UNC-Thread (R) mm - M12x1.75
S (mm) - 32.6
Notes :
TB - Tapped base pillow block
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
M - Metric

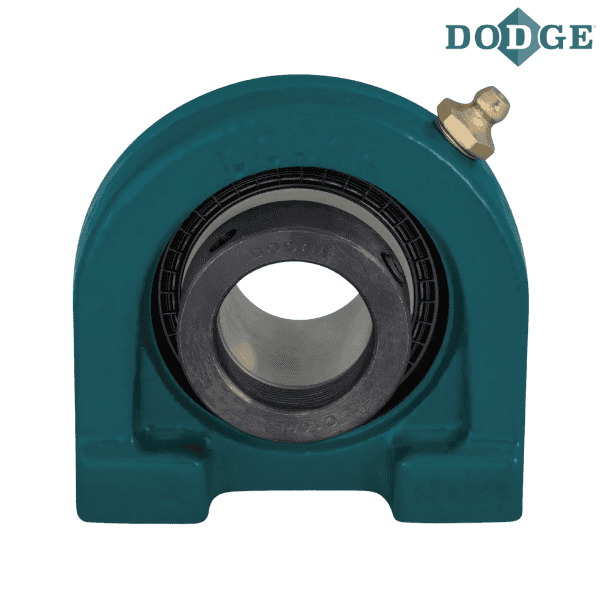

** Images are for representation purposes only
