Description
Brand - DODGE
Item Number - 130772 DODGE - TB-SXV-35M
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty Tapped Base Pillow Blocks)
Series - 207
Shaft Size (mm) - 35
Description - TB-SXV-35M
Weight (kg) - 1.4

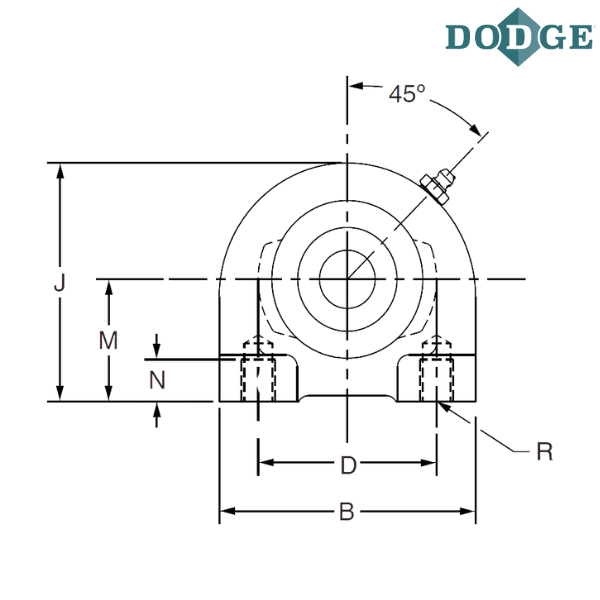

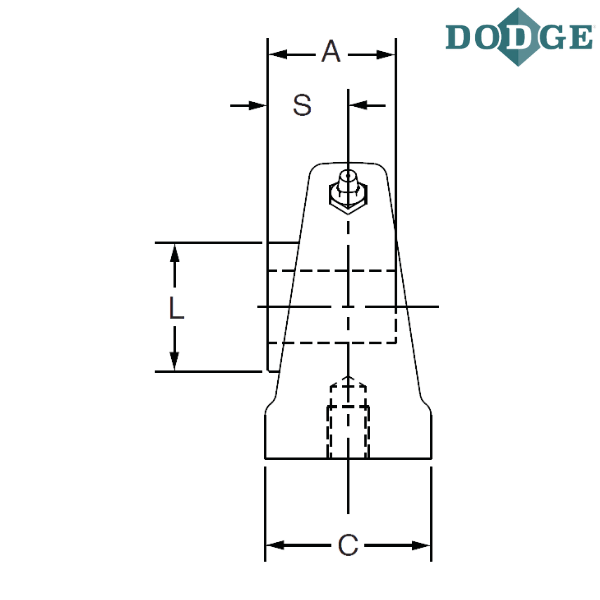

Length Through Bore (A) mm - 38.9
Overall Length (B) mm - 108
Width (C) mm - 47.8
Bolt Center to Center Length (D) mm - 82.6
Overall Height (J) mm - 95.3
L (mm) - 54.1
Base to Center Height (M) mm - 47.6
Minimum Tap Depth (N) mm - 19.1
Bolt Hole UNC-Thread (R) mm - M10x1.5
S (mm) - 29.5
Notes :
TB - Tapped base pillow block
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
M - Metric

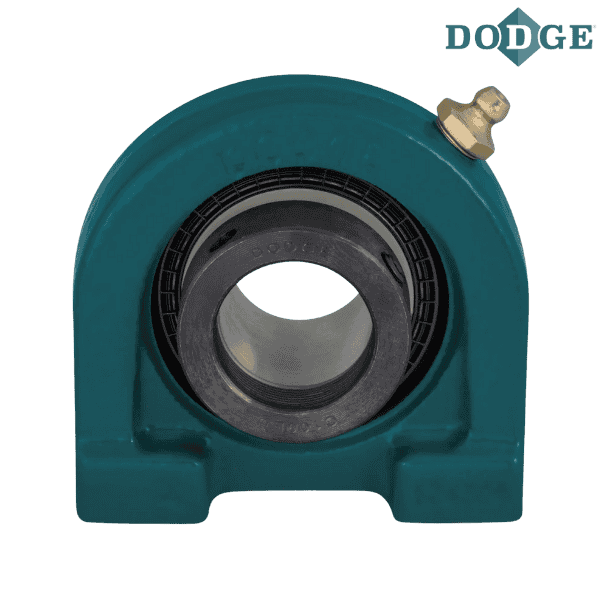

** Images are for representation purposes only
