130696 DODGE - P2B-GTH-207-E

Brand - DODGE
Item Number - 130696 DODGE - P2B-GTH-207-E
Category - GRIP TIGHT Adapter Ball Bearings (GTH-E Expansion Pillow Blocks)
Series - 212
Shaft Size (inch) - 2.4375
Description - P2B-GTH-207-E
Part Number (Unit without Adapter Sleeve and Lock Nut) - 130702
Description (Unit without Adapter Sleeve and Lock Nut) - P2B-GTH-12-E
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136538
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-12-207-D
Weight (lbs) - 20.1

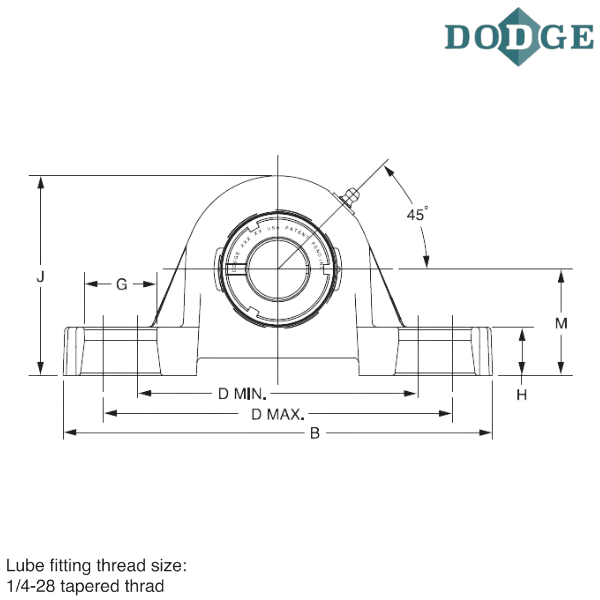

Length Through Bore (A) inch - 2.12
Overall Length (B) inch - 10.75
Width (C) inch - 2.69
Bolt to Bolt Minimum Distance (D min) inch - 7.5
Bolt to Bolt Maximum Distance (D max) inch - 8.5
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.32
H (inch) - 0.94
Overall Height (J) inch - 6.09
L (inch) - 3.69
Base to Center Height (M) inch - 3
R (inch) - 0.73
S (inch) - 1.39
Total Expansion (T) inch - 0.22
U (inch) - 4.88
V (inch) - 9.76
W (inch) - 0.94
X (inch) - 0.12
Z (inch) - 1.46
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking
E - Expansion

** Images are for representation purposes only
