130695 DODGE - P2B-GTH-203-E

Brand - DODGE
Item Number - 130695 DODGE - P2B-GTH-203-E
Category - GRIP TIGHT Adapter Ball Bearings (GTH-E Expansion Pillow Blocks)
Series - 211
Shaft Size (inch) - 2.1875
Description - P2B-GTH-203-E
Part Number (Unit without Adapter Sleeve and Lock Nut) - 130701
Description (Unit without Adapter Sleeve and Lock Nut) - P2B-GTH-11-E
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136536
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-11-203-D
Weight (lbs) - 15.7

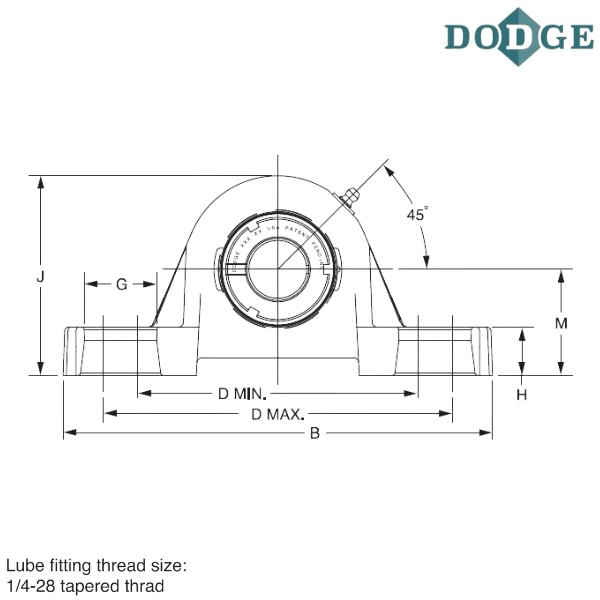

Length Through Bore (A) inch - 1.93
Overall Length (B) inch - 9.5
Width (C) inch - 2.37
Bolt to Bolt Minimum Distance (D min) inch - 6.88
Bolt to Bolt Maximum Distance (D max) inch - 7.94
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.21
H (inch) - 0.88
Overall Height (J) inch - 5.4
L (inch) - 3.43
Base to Center Height (M) inch - 2.75
R (inch) - 0.67
S (inch) - 1.26
Total Expansion (T) inch - 0.22
U (inch) - 4.25
V (inch) - 8.5
W (inch) - 0.88
X (inch) - 0.12
Z (inch) - 1.32
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking
E - Expansion

** Images are for representation purposes only
