130692 DODGE - P2B-GTH-107-E

Brand - DODGE
Item Number - 130692 DODGE - P2B-GTH-107-E
Category - GRIP TIGHT Adapter Ball Bearings (GTH-E Expansion Pillow Blocks)
Series - 207
Shaft Size (inch) - 1.4375
Description - P2B-GTH-107-E
Part Number (Unit without Adapter Sleeve and Lock Nut) - 130698
Description (Unit without Adapter Sleeve and Lock Nut) - P2B-GTH-07-E
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136529
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-07-107-D
Weight (lbs) - 6.9

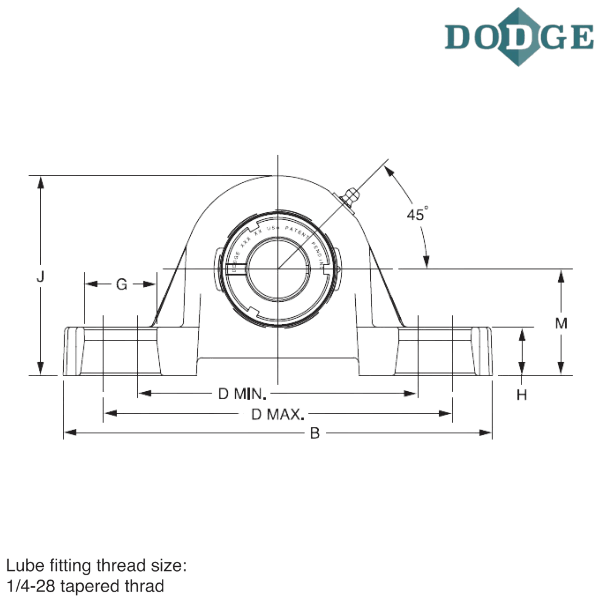

Length Through Bore (A) inch - 1.62
Overall Length (B) inch - 7.25
Width (C) inch - 1.93
Bolt to Bolt Minimum Distance (D min) inch - 5.18
Bolt to Bolt Maximum Distance (D max) inch - 5.88
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.91
H (inch) - 0.93
Overall Height (J) inch - 4.19
L (inch) - 2.38
Base to Center Height (M) inch - 2.13
R (inch) - 0.54
S (inch) - 1.08
Total Expansion (T) inch - 0.16
U (inch) - 3.26
V (inch) - 6.52
W (inch) - 0.69
X (inch) - 0.12
Z (inch) - 1.14
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking
E - Expansion

** Images are for representation purposes only
