130691 DODGE - P2B-GTH-103-E

Brand - DODGE
Item Number - 130691 DODGE - P2B-GTH-103-E
Category - GRIP TIGHT Adapter Ball Bearings (GTH-E Expansion Pillow Blocks)
Series - 206
Shaft Size (inch) - 1.1875
Description - P2B-GTH-103-E
Part Number (Unit without Adapter Sleeve and Lock Nut) - 130697
Description (Unit without Adapter Sleeve and Lock Nut) - P2B-GTH-06-E
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136526
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-06-103-D
Weight (lbs) - 5

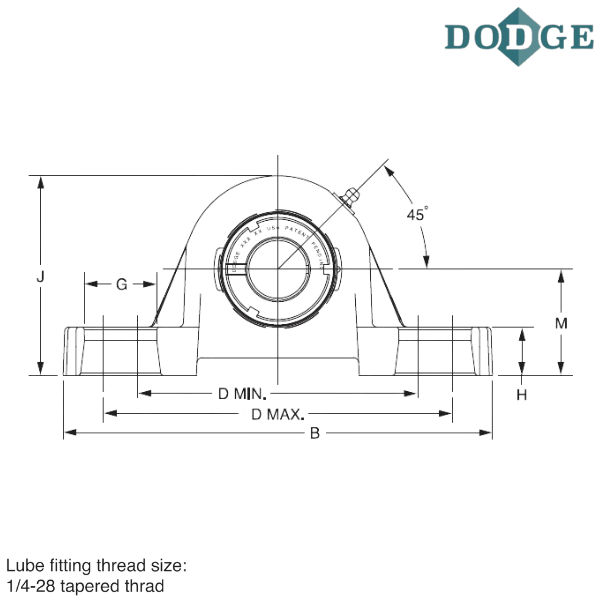

Length Through Bore (A) inch - 1.61
Overall Length (B) inch - 6.5
Width (C) inch - 1.75
Bolt to Bolt Minimum Distance (D min) inch - 4.68
Bolt to Bolt Maximum Distance (D max) inch - 5.44
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.94
H (inch) - 0.71
Overall Height (J) inch - 3.75
L (inch) - 2.08
Base to Center Height (M) inch - 1.88
R (inch) - 0.52
S (inch) - 1.09
Total Expansion (T) inch - 0.16
U (inch) - 2.91
V (inch) - 5.82
W (inch) - 0.56
X (inch) - 0.12
Z (inch) - 1.13
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking
E - Expansion

** Images are for representation purposes only
