Description
Brand - DODGE
Item Number - 130357 DODGE - TB-SC-35M
Category - Setscrew Ball Bearings (SC Normal Duty Tapped Base Pillow Blocks)
Series - 207
Shaft Size (mm) - 35
Description - TB-SC-35M
Weight (kg) - 0.13

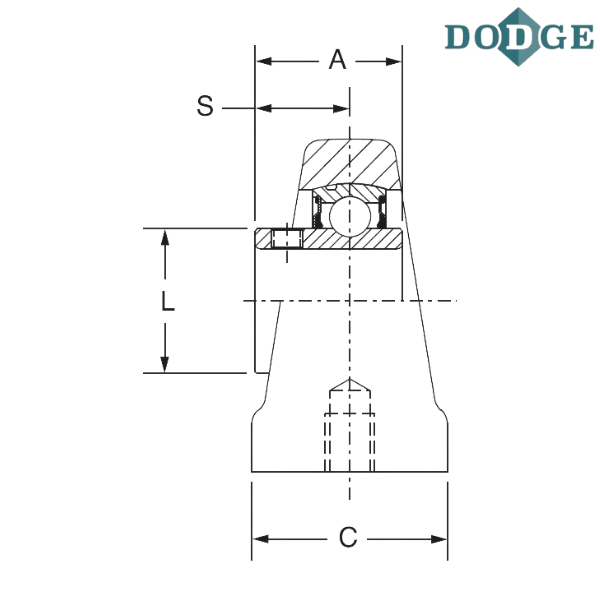

Length Through Bore (A) mm - 43.4

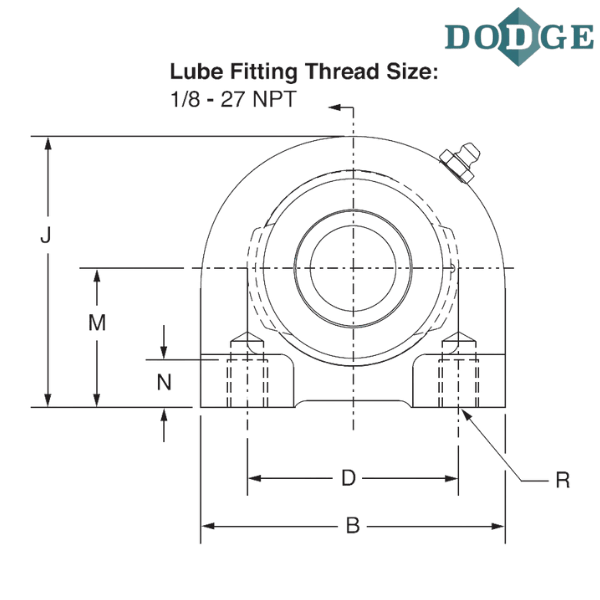

Overall Length (B) mm - 108
Width (C) mm - 47.8
Bolt Center to Center Length (D) mm - 82.6
Overall Height (J) mm - 95.3
L (mm) - 46.7
Base to Center Height (M) mm - 47.6
N (mm) - 19.1
R (mm) - M10x1.5
S (mm) - 26.4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TB - Tapped base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking
M - Metric

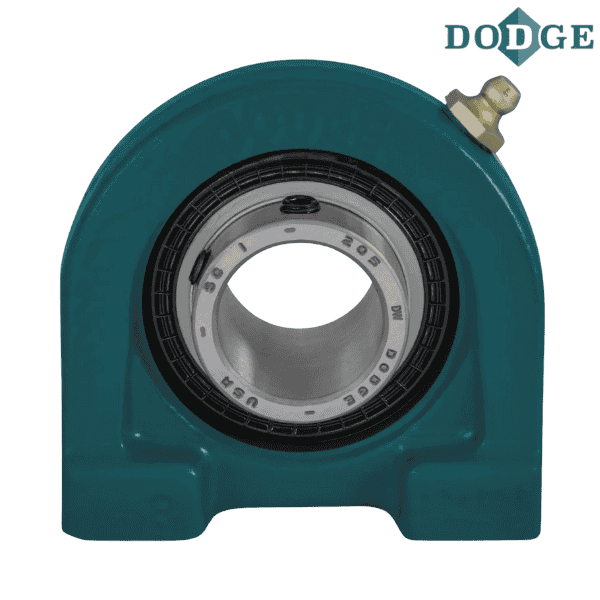

** Images are for representation purposes only
