Description
Brand - DODGE
Item Number - 130356 DODGE - TB-SC-30M
Category - Setscrew Ball Bearings (SC Normal Duty Tapped Base Pillow Blocks)
Series - 206
Shaft Size (mm) - 30
Description - TB-SC-30M
Weight (kg) - 0.1

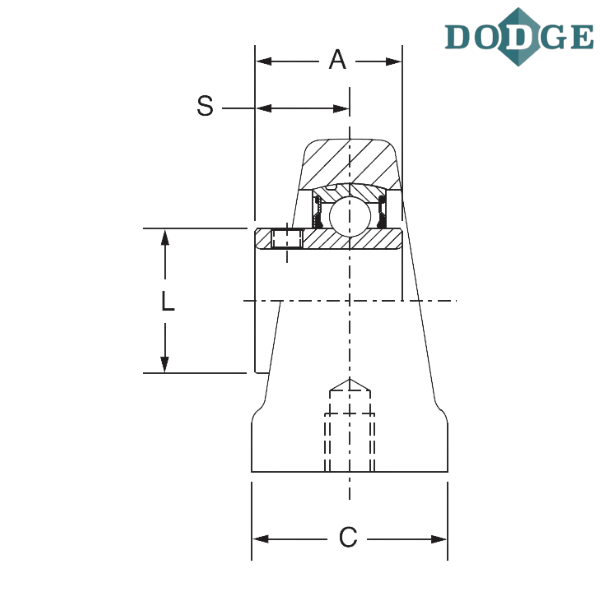

Length Through Bore (A) mm - 38.6

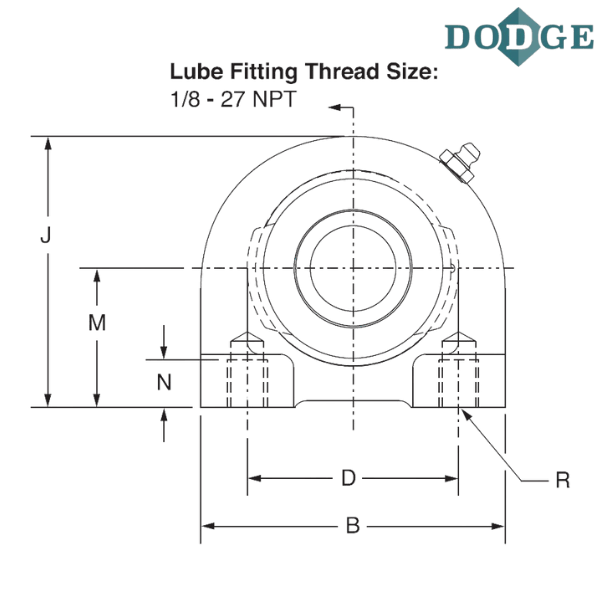

Overall Length (B) mm - 101.6
Width (C) mm - 38.1
Bolt Center to Center Length (D) mm - 76.2
Overall Height (J) mm - 85.9
L (mm) - 39.9
Base to Center Height (M) mm - 42.9
N (mm) - 16
R (mm) - M10x1.5
S (mm) - 23.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TB - Tapped base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking
M - Metric

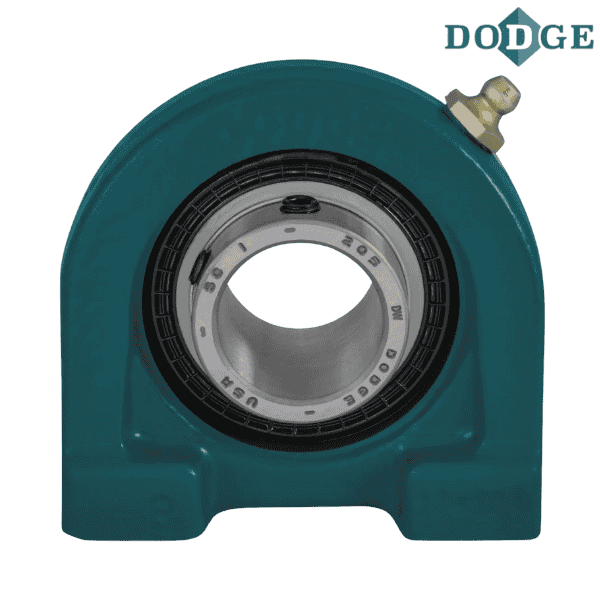

** Images are for representation purposes only
