Description
Brand - DODGE
Item Number - 130352 DODGE - F2B-SXV-200L
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty 2-Bolt Flange Bearings)
Series - 211
Shaft Size (inch) - 2
Description - F2B-SXV-200L
Description (No-Lube/Sealed for Life) - F2B-SXV-200L-NL
Weight (lbs) - 6.9

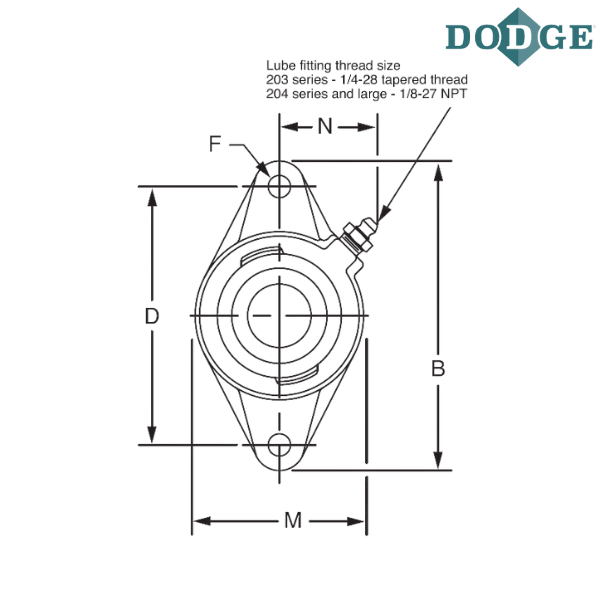

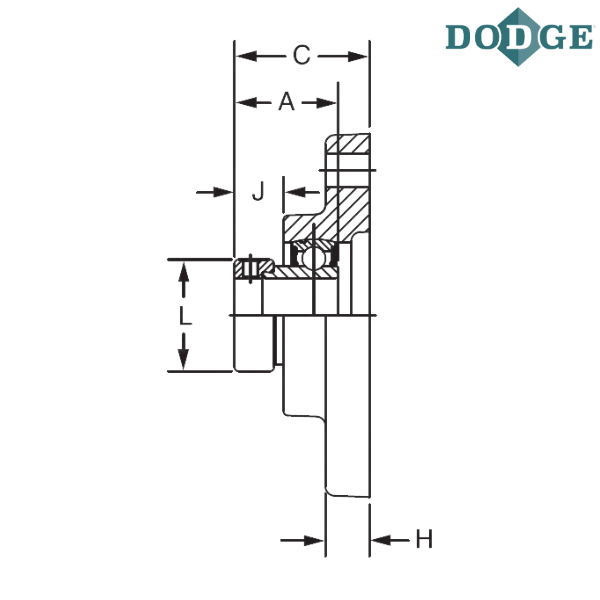

Length Through Bore (A) inch - 1.9
Overall Length (B) inch - 8.63
Thickness (C) inch - 2.36
Bolt Center to Center Length (D) inch - 7.25
F-Bolt Diameter (inch) - 0.625
H (inch) - 0.67
J (inch) - 0.77
L (inch) - 3
Overall Width (M) inch - 5.25
N (inch) - 2.27
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2 bolt flange
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
L - Next larger ring size

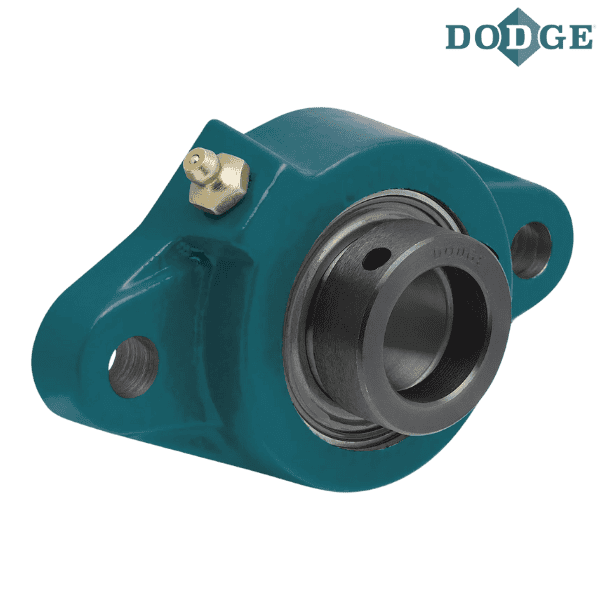

** Images are for representation purposes only
