Description
Brand - DODGE
Item Number - 130347 DODGE - WSTU-SXV-112
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty Wide Slot Take-Up Bearings)
Series - 209
Shaft Size (inch) - 1.75
Description - WSTU-SXV-112
Weight (lbs) - 4.7
Take- Up Frame Size - WS400

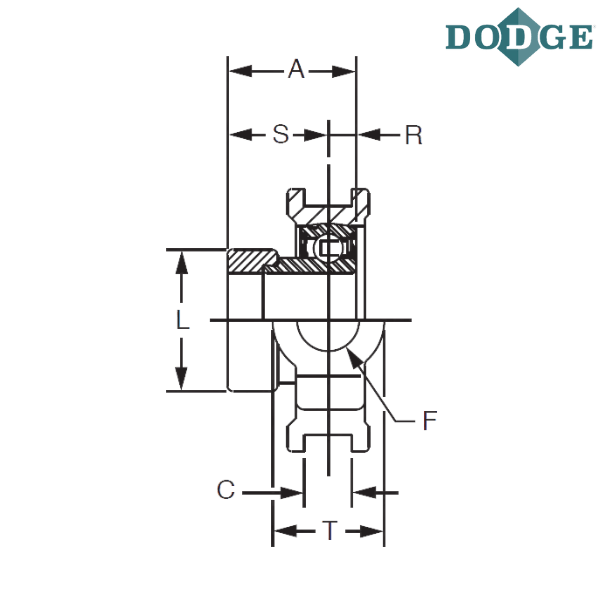

Length Through Bore (A) inch - 1.69

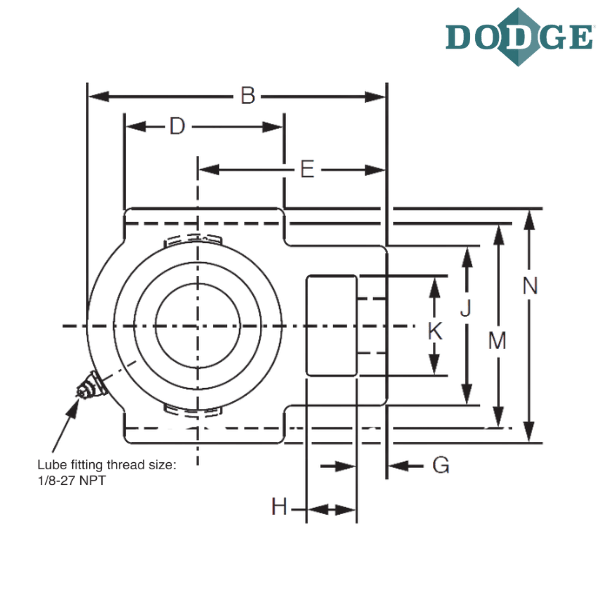

Overall Length (B) inch - 5.63
C (inch) - 0.688
D (inch) - 3.25
E (inch) - 3.44
F (Screw Diameter) inch - 1
G (inch) - 0.63
H (inch) - 0.75
J (inch) - 3.25
K (inch) - 1.94
L (inch) - 2.5
M (inch) - 3.985/4.015
Overall Width (N) inch - 4.75
R (inch) - 0.43
S (inch) - 1.26
T (inch) - 1.94
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
WSTU - Wide slot take-up
SXV - Narrow inner ring, intermediate duty, eccentric locking collar

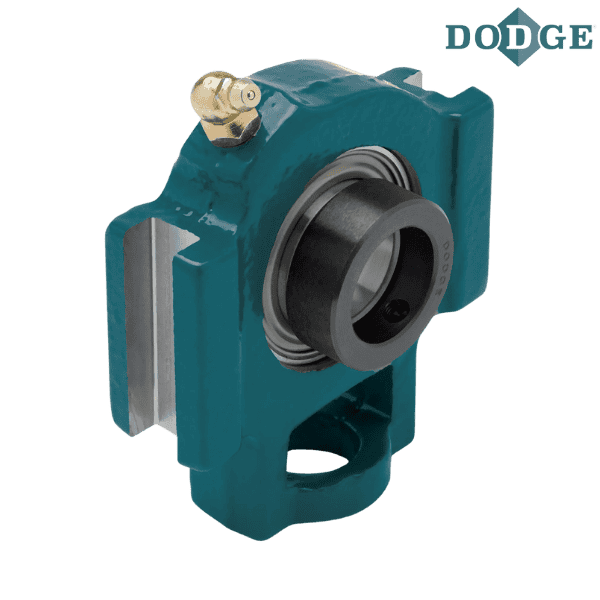

** Images are for representation purposes only
