Description
Brand - DODGE
Item Number - 130342 DODGE - NSTU-SXV-115
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty Narrow Slot Take-Up Bearings)
Series - 210
Shaft Size (inch) - 1.9375
Description - NSTU-SXV-115
Weight (lbs) - 4.9
Take- Up Frame Size - NS400

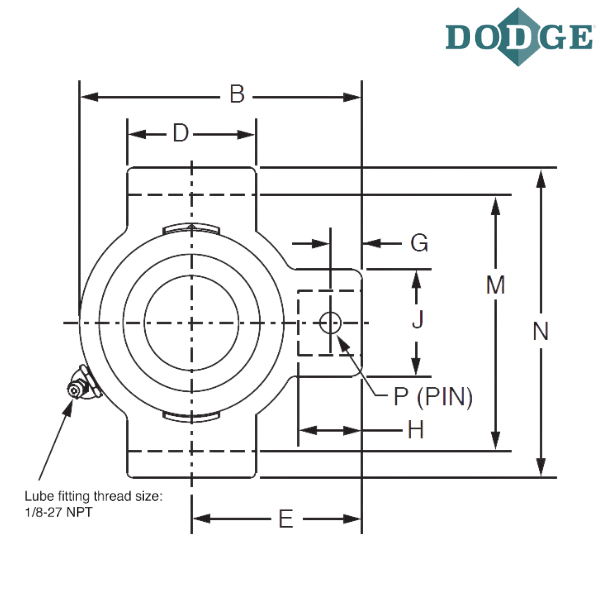

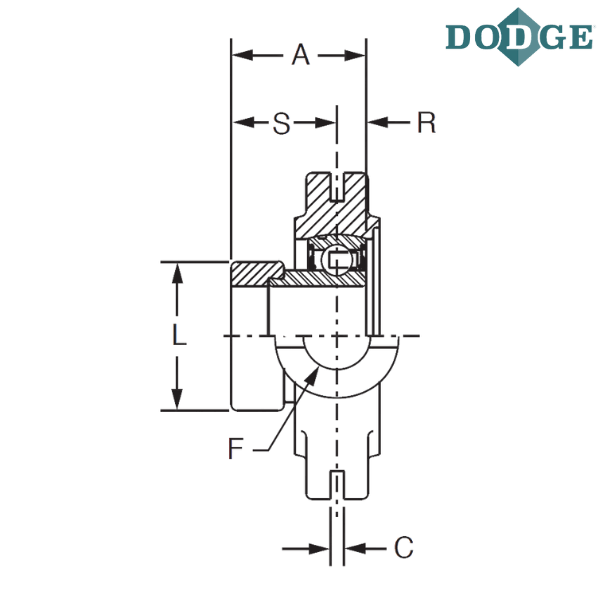

Length Through Bore (A) inch - 1.72
Overall Length (B) inch - 5.5
C (inch) - 0.313
D (inch) - 3
E (inch) - 3.25
F (Screw Diameter) inch - 0.875
G (inch) - 0.59
H (inch) - 1.09
J (inch) - 1.63
L (inch) - 2.75
M (inch) - 4.015/3.985
Overall Width (N) inch - 4.75
Pin Diameter (P) inch - 0.38
R (inch) - 0.43
S (inch) - 1.29
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
NSTU - Narrow slot take-up
SXV - Narrow inner ring, intermediate duty, eccentric locking collar

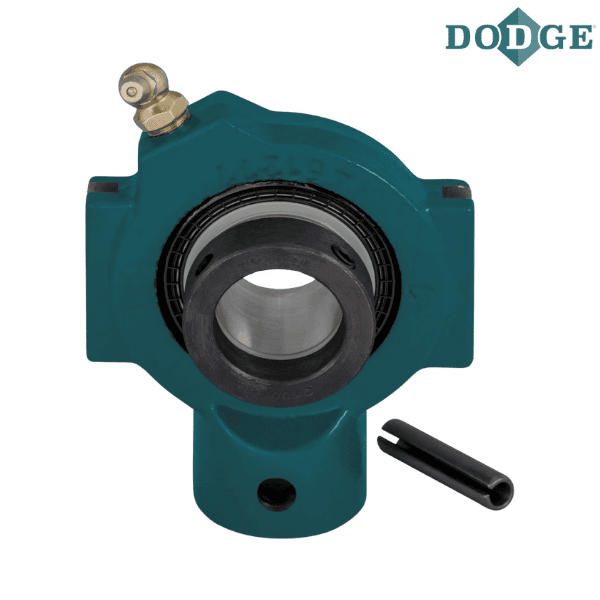

** Images are for representation purposes only
