Description

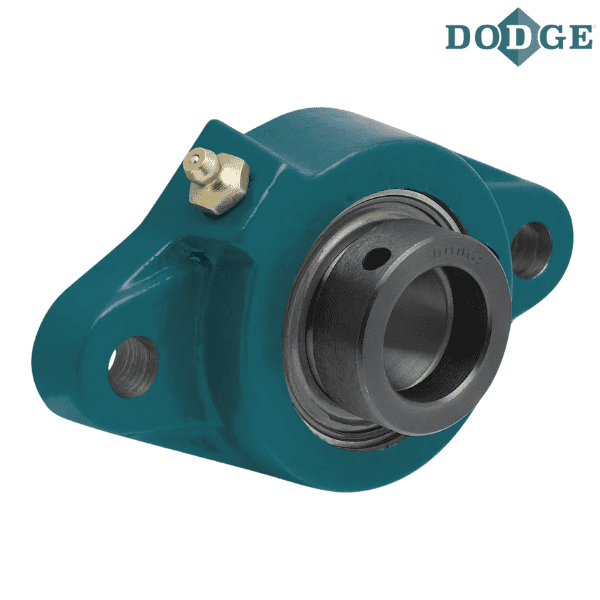

Brand - DODGE
Item Number - 130331 DODGE - F2B-SXV-200
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty 2-Bolt Flange Bearings)
Series - 210
Shaft Size (inch) - 2
Description - F2B-SXV-200
Part Number (No-Lube/Sealed for Life) - 068867
Description (No-Lube/Sealed for Life) - F2B-SXV-200-NL
Weight (lbs) - 5.3

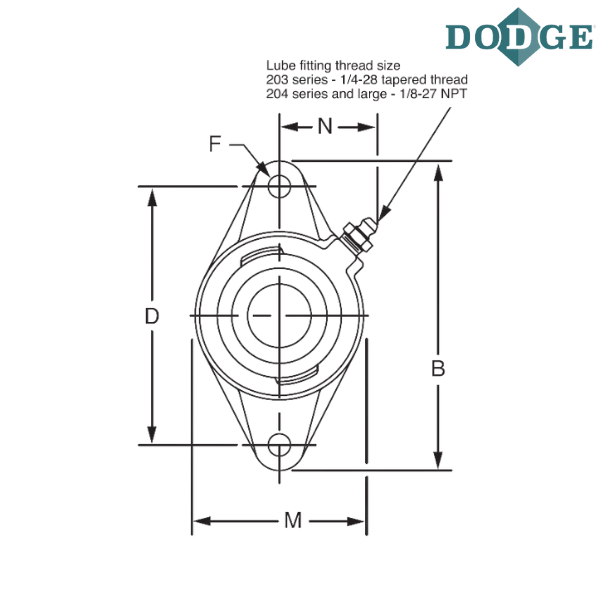

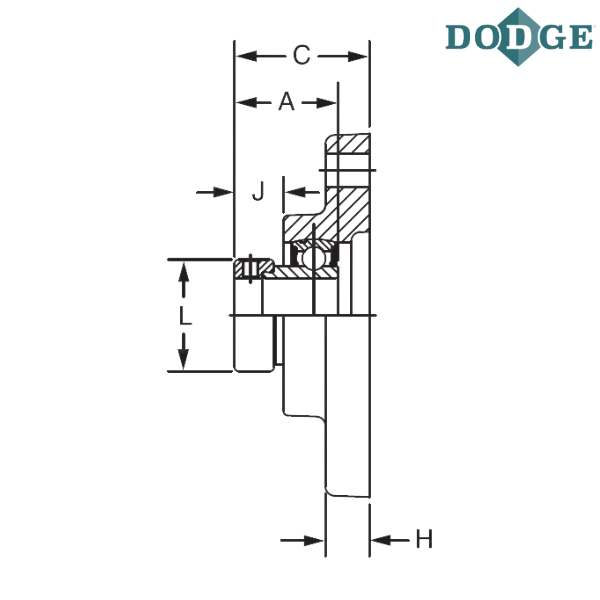

Length Through Bore (A) inch - 1.72
Overall Length (B) inch - 7.44
Thickness (C) inch - 2.12
Bolt Center to Center Length (D) inch - 6.19
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.63
J (inch) - 0.65
L (inch) - 2.75
Overall Width (M) inch - 4.56
N (inch) - 2.03
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2 bolt flange
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
** Images are for representation purposes only
