Description
Brand - DODGE

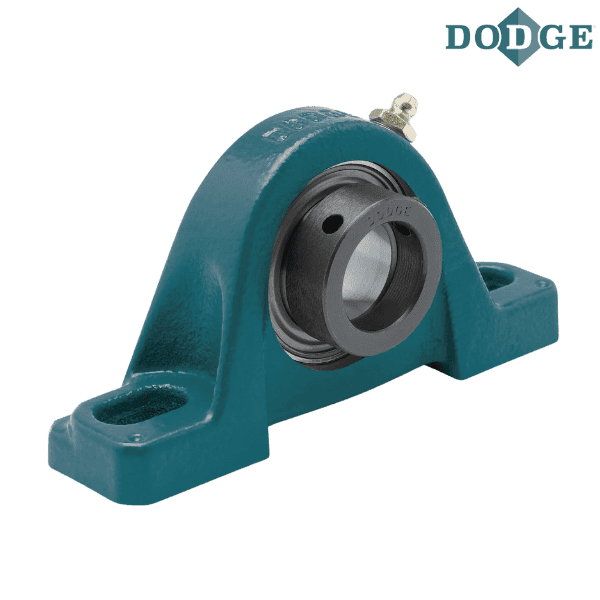

Item Number - 130312 DODGE - P2B-SXV-111
Category - Eccentric SXV Collar Ball Bearings (SXV and SXVU Intermediate Duty Pillow Blocks)
Series - 209
Shaft Size (inch) - 1.6875
Description - P2B-SXV-111
Description (No-Lube/Sealed for Life) - P2B-SXV-111-NL
Weight (lbs) - 5.5

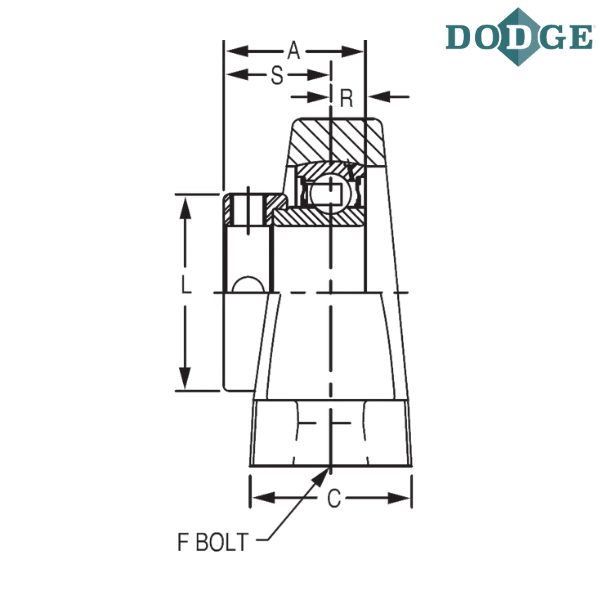

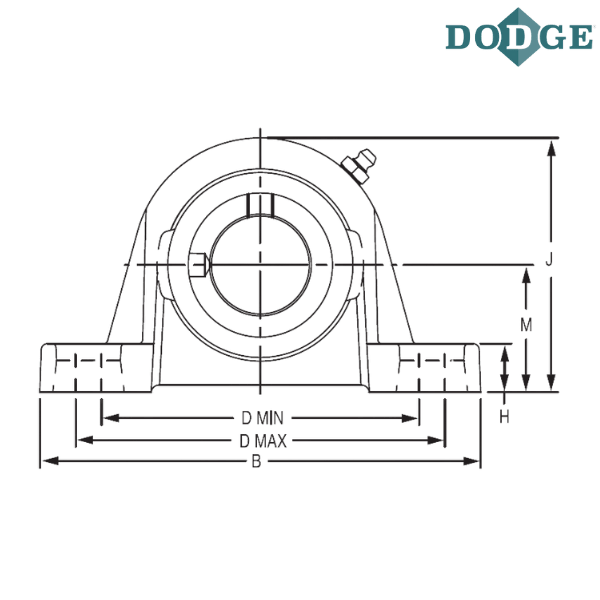

Length Through Bore (A) inch - 1.69
Overall Length (B) inch - 7.44
Width (C) inch - 2
Bolt to Bolt Minimum Distance (D min) inch - 5.5
Bolt to Bolt Maximum Distance (D max) inch - 6.19
F-Bolt Diameter (inch) - 0.5

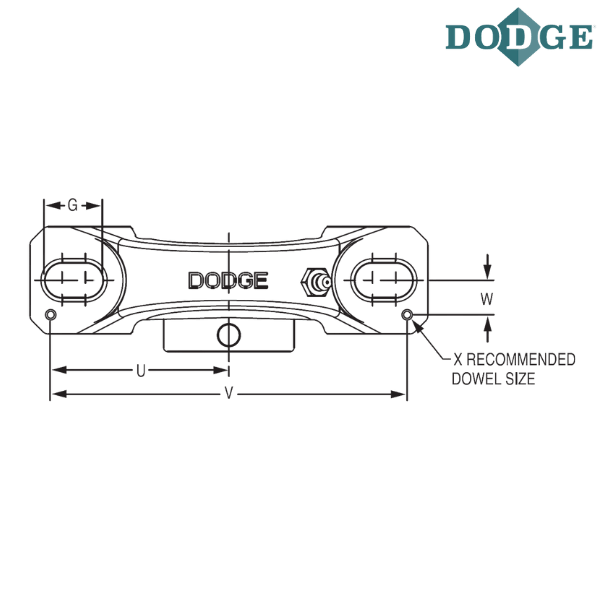

G (inch) - 0.9
H (inch) - 0.75
Overall Height (J) inch - 4.28
L (inch) - 2.5
Base to Center Height (M) inch - 2.13
R (inch) - 0.43
S (inch) - 1.26
U (inch) - 3.38
V (inch) - 6.76
W (inch) - 0.69
X (inch) - 0.12
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - 2 bolt base pillow block
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
** Images are for representation purposes only
