Description
Brand - NILOS
Item Number - 1301 AV NILOS
Category - NILOS-RING for Double Row Self-Aligning Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 12 mm
Outer Diameter (a) - 32.7 mm
Dimension (C) - 23 mm
Widtth (h) - 2 mm
Material Thickness (s) - 0.3 mm

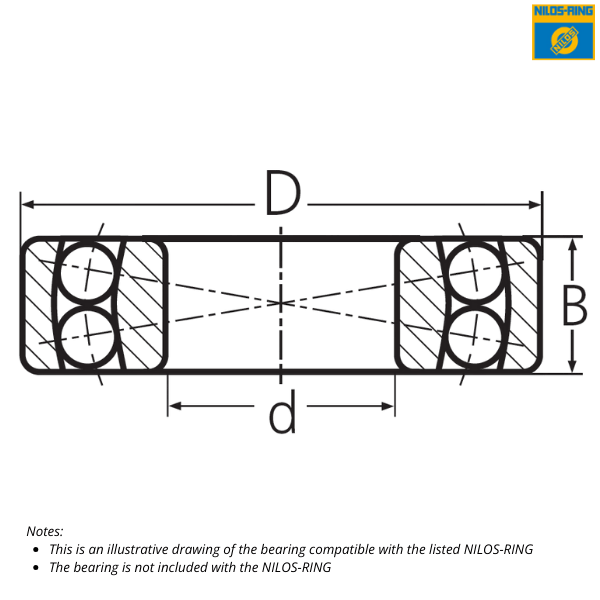

Description of Compatible Bearing (13 Series) :
Bearing Part Number - 1301
Bearing Type - Double Row Self-Aligning Ball Bearing
Inner Diameter (d) - 12 mm
Outer Diameter (D) - 37 mm
Width (B) - 12 mm
♦♦ Images are for representation purposes only
Item Number - 1301 AV NILOS
Category - NILOS-RING for Double Row Self-Aligning Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 12 mm
Outer Diameter (a) - 32.7 mm
Dimension (C) - 23 mm
Widtth (h) - 2 mm
Material Thickness (s) - 0.3 mm
Description of Compatible Bearing (13 Series) :
Bearing Part Number - 1301
Bearing Type - Double Row Self-Aligning Ball Bearing
Inner Diameter (d) - 12 mm
Outer Diameter (D) - 37 mm
Width (B) - 12 mm
♦♦ Images are for representation purposes only
