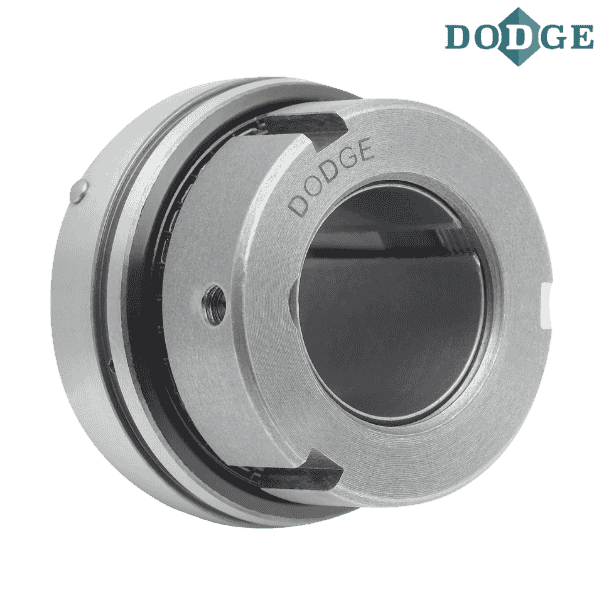

129895 DODGE - INS-GTM-55M

Brand - DODGE
Item Number - 129895 DODGE - INS-GTM-55M
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Bearing Inserts)
Series - 212
Shaft Size (mm) - 55
Description - INS-GTM-55M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129525
Description (Unit without Adapter Sleeve and Lock Nut) - INS-GT-12
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136567
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-12-55M-D
Weight (kg) - 2.2

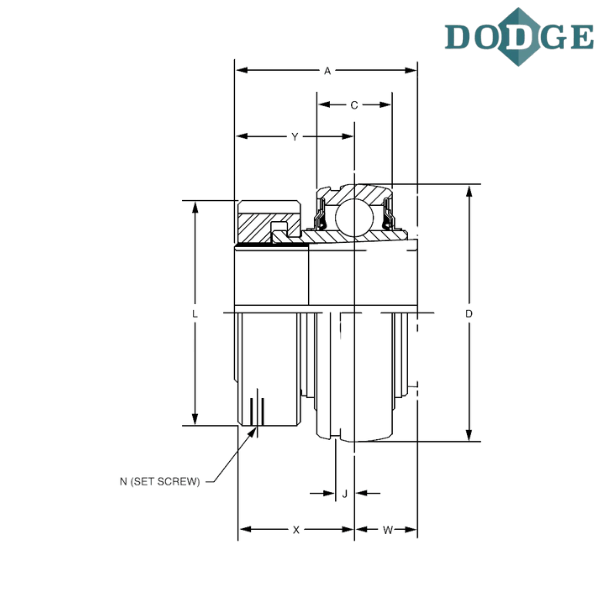

Overall Width (A) mm - 53.8
C (mm) - 25.9
Overall Length (D) mm - 110
J (mm) - 6.4
L (mm) - 93.7
SetScrew, UNF (N) - 10-32 x 1/4
W (mm) - 18.5
X (mm) - 37.1
Y (mm) - 35.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
INS - Insert
GTM - Wide inner ring, medium duty, thin wall adapter locking
M - Metric

** Images are for representation purposes only
