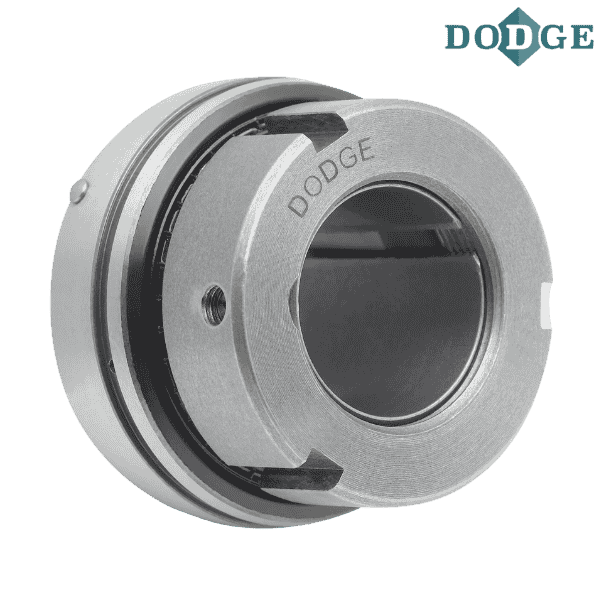

129845 DODGE - INS-GT-204

Brand - DODGE
Item Number - 129845 DODGE - INS-GT-204
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Bearing Inserts)
Series - 211
Shaft Size (inch) - 2.25
Description - INS-GT-204
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129524
Description (Unit without Adapter Sleeve and Lock Nut) - INS-GT-11
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136537
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-11-204-D
Weight (lbs) - 3.3
Overall Width (A) inch - 1.93
C (inch) - 0.87
Overall Length (D) inch - 3.937
J (inch) - 0.25
L (inch) - 3.43
SetScrew, UNF (N) - 10-32 x 1/4
W (inch) - 0.67
X (inch) - 1.32
Y (inch) - 1.26
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
INS - Insert
GT - Wide inner ring, normal duty, thin wall adapter locking

** Images are for representation purposes only
