129841 DODGE - P2B-GTU-102

Brand - DODGE
Item Number - 129841 DODGE - P2B-GTU-102
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Pillow Blocks)
Series - 206 (GTU)
Shaft Size (inch) - 1.125
Description - P2B-GTU-102
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129419
Description (Unit without Adapter Sleeve and Lock Nut) - P2B-GTU-06
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136525
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-06-102-D
Weight (lbs) - 3.8

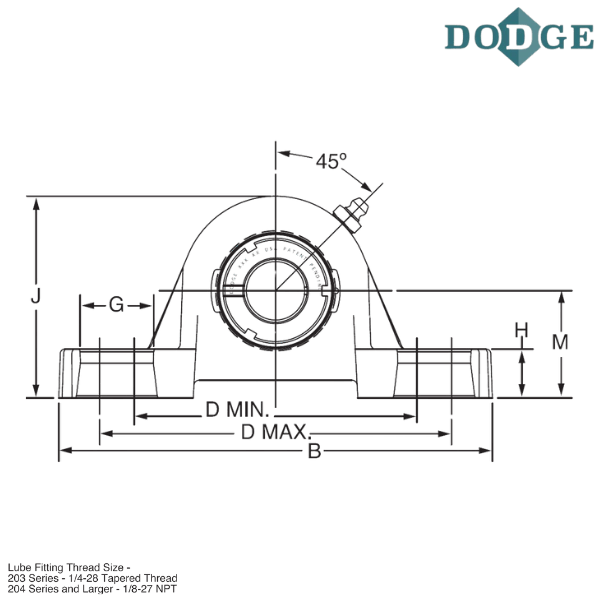

Length Through Bore (A) inch - 1.61
Overall Length (B) inch - 6.25
Width (C) inch - 1.75
Bolt to Bolt Minimum Distance (D min) inch - 4.25
Bolt to Bolt Maximum Distance (D max) inch - 5
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.94
H (inch) - 0.75
Overall Height (J) inch - 3.31
L (inch) - 2.08
Base to Center Height (M) inch - 1.69
R (inch) - 0.52
S (inch) - 1.09
U (inch) - 2.88
V (inch) - 5.76
W (inch) - 0.56
X (inch) - 0.12
Z (inch) - 1.13
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking
U - Higher back pillow block

** Images are for representation purposes only
