129821 DODGE - INS-GTM-215

Brand - DODGE
Item Number - 129821 DODGE - INS-GTM-215
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Bearing Inserts)
Series - 216
Shaft Size (inch) - 2.9375
Description - INS-GTM-215
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129528
Description (Unit without Adapter Sleeve and Lock Nut) - INS-GT-16
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136550
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-16-215-D
Weight (lbs) - 6.9
Overall Width (A) inch - 2.7
C (inch) - 1.18
Overall Length (D) inch - 5.5118
J (inch) - 0.29
L (inch) - 4.69
SetScrew, UNF (N) - 10-32 x 1/4
W (inch) - 0.89
X (inch) - 1.78
Y (inch) - 1.81
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
INS - Insert
GTM - Wide inner ring, medium duty, thin wall adapter locking

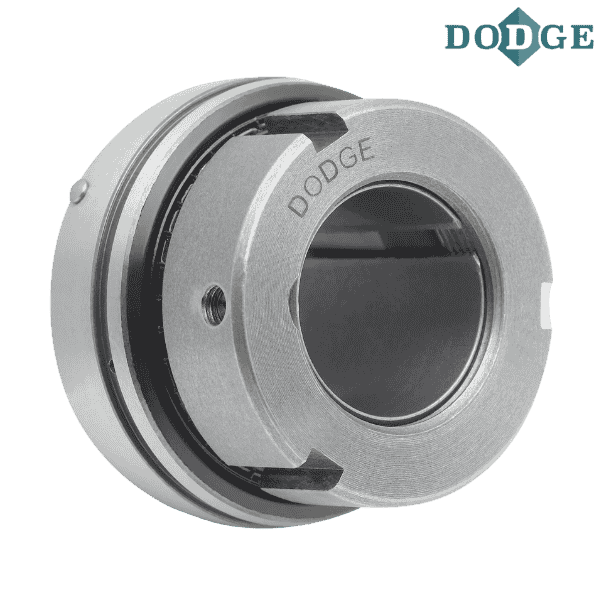

** Images are for representation purposes only
