129797 DODGE - INS-GT-20M

Brand - DODGE
Item Number - 129797 DODGE - INS-GT-20M
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Bearing Inserts)
Series - 204
Shaft Size (mm) - 20
Description - INS-GT-20M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129517
Description (Unit without Adapter Sleeve and Lock Nut) - INS-GT-04
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136553
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-04-20M-D
Weight (kg) - 0.3
Overall Width (A) mm - 37.6
C (mm) - 14.7
Overall Length (D) mm - 47
J (mm) - 3.8
L (mm) - 38.1
SetScrew, UNF (N) - 10-32 x 1/4
W (mm) - 11.7
X (mm) - 26.2
Y (mm) - 25.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
INS - Insert
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric

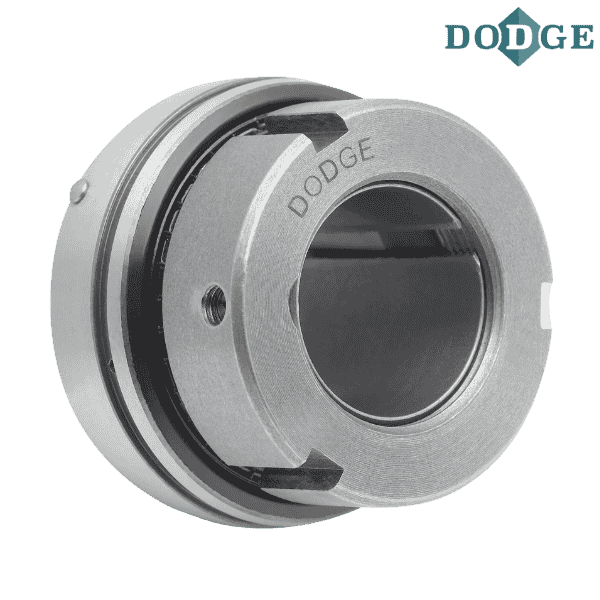

** Images are for representation purposes only
