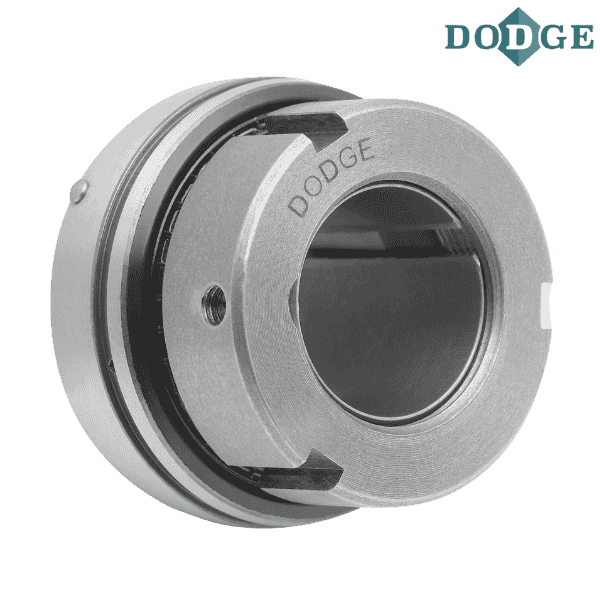

129795 DODGE - INS-GT-215

Brand - DODGE
Item Number - 129795 DODGE - INS-GT-215
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Bearing Inserts)
Series - 215
Shaft Size (inch) - 2.9375
Description - INS-GT-215
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129527
Description (Unit without Adapter Sleeve and Lock Nut) - INS-GT-15
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136540
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-15-215-D
Weight (lbs) - 5.9

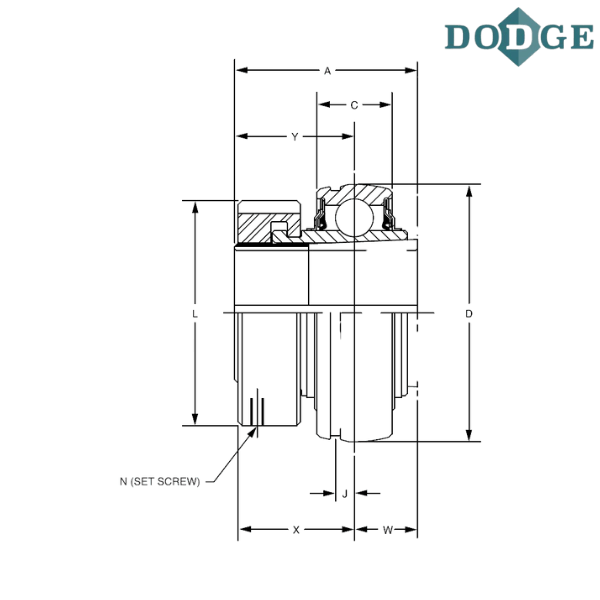

Overall Width (A) inch - 2.46
C (inch) - 1.14
Overall Length (D) inch - 5.1181
J (inch) - 0.28
L (inch) - 4.44
SetScrew, UNF (N) - 10-32 x 1/4
W (inch) - 0.86
X (inch) - 1.6
Y (inch) - 1.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
INS - Insert
GT - Wide inner ring, normal duty, thin wall adapter locking

** Images are for representation purposes only
