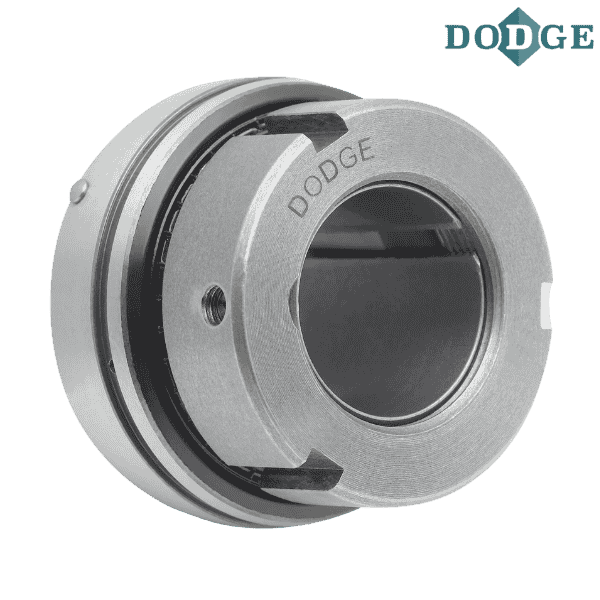

129794 DODGE - INS-GT-211

Brand - DODGE
Item Number - 129794 DODGE - INS-GT-211
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Bearing Inserts)
Series - 214
Shaft Size (inch) - 2.6875
Description - INS-GT-211
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129526
Description (Unit without Adapter Sleeve and Lock Nut) - INS-GT-14
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136539
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-14-211-D
Weight (lbs) - 5

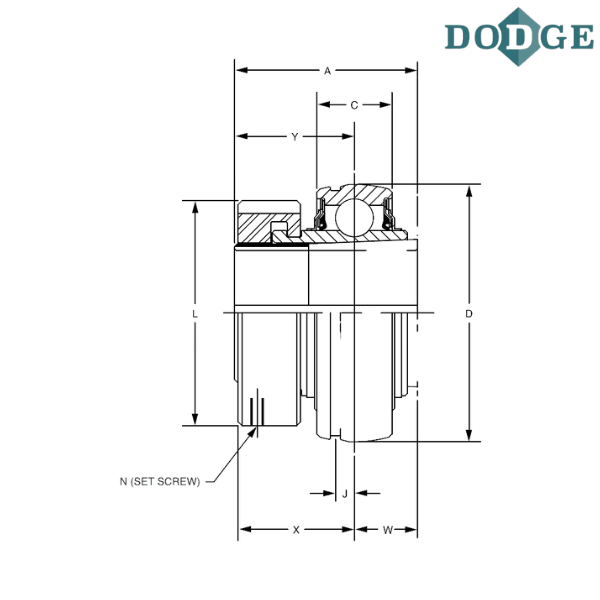

Overall Width (A) inch - 2.39
C (inch) - 1.1
Overall Length (D) inch - 4.9213
J (inch) - 0.26
L (inch) - 4
SetScrew, UNF (N) - 10-32 x 1/4
W (inch) - 0.84
X (inch) - 1.58
Y (inch) - 1.55
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
INS - Insert
GT - Wide inner ring, normal duty, thin wall adapter locking

** Images are for representation purposes only
