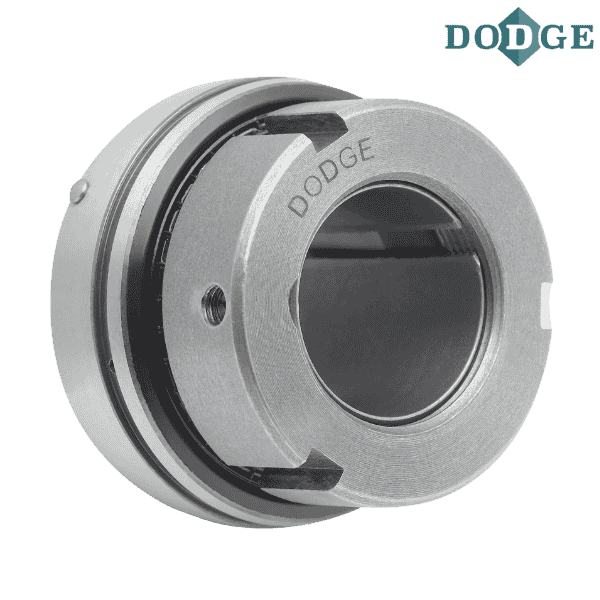

129793 DODGE - INS-GT-207

Brand - DODGE
Item Number - 129793 DODGE - INS-GT-207
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Bearing Inserts)
Series - 212
Shaft Size (inch) - 2.4375
Description - INS-GT-207
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129525
Description (Unit without Adapter Sleeve and Lock Nut) - INS-GT-12
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136538
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-12-207-D
Weight (lbs) - 4.8
Overall Width (A) inch - 2.12
C (inch) - 1.02
Overall Length (D) inch - 4.3307
J (inch) - 0.25
L (inch) - 3.69
SetScrew, UNF (N) - 10-32 x 1/4
W (inch) - 0.73
X (inch) - 1.46
Y (inch) - 1.39
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
INS - Insert
GT - Wide inner ring, normal duty, thin wall adapter locking

** Images are for representation purposes only
