129790 DODGE - INS-GT-115

Brand - DODGE
Item Number - 129790 DODGE - INS-GT-115
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Bearing Inserts)
Series - 210
Shaft Size (inch) - 1.9375
Description - INS-GT-115
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129523
Description (Unit without Adapter Sleeve and Lock Nut) - INS-GT-10
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136534
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-10-115-D
Weight (lbs) - 3

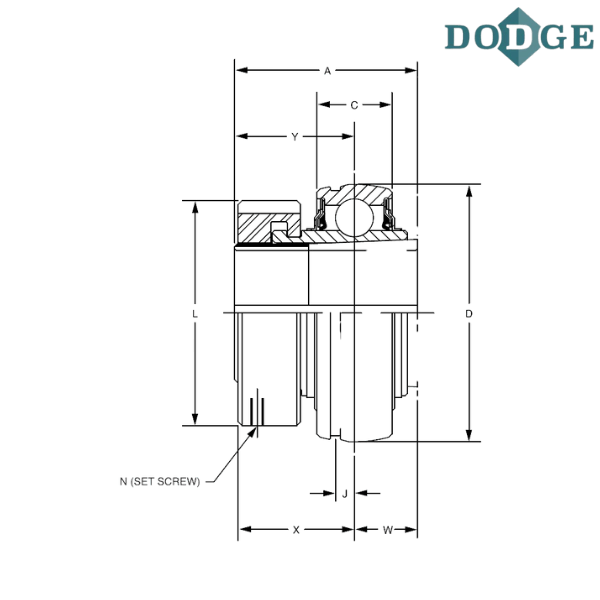

Overall Width (A) inch - 1.86
C (inch) - 0.87
Overall Length (D) inch - 3.5433
J (inch) - 0.25
L (inch) - 3.13
SetScrew, UNF (N) - 10-32 x 1/4
W (inch) - 0.63
X (inch) - 1.26
Y (inch) - 1.23
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
INS - Insert
GT - Wide inner ring, normal duty, thin wall adapter locking
