129785 DODGE - INS-GT-107

Brand - DODGE
Item Number - 129785 DODGE - INS-GT-107
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Bearing Inserts)
Series - 207
Shaft Size (inch) - 1.4375
Description - INS-GT-107
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129520
Description (Unit without Adapter Sleeve and Lock Nut) - INS-GT-07
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136529
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-07-107-D
Weight (lbs) - 1.7

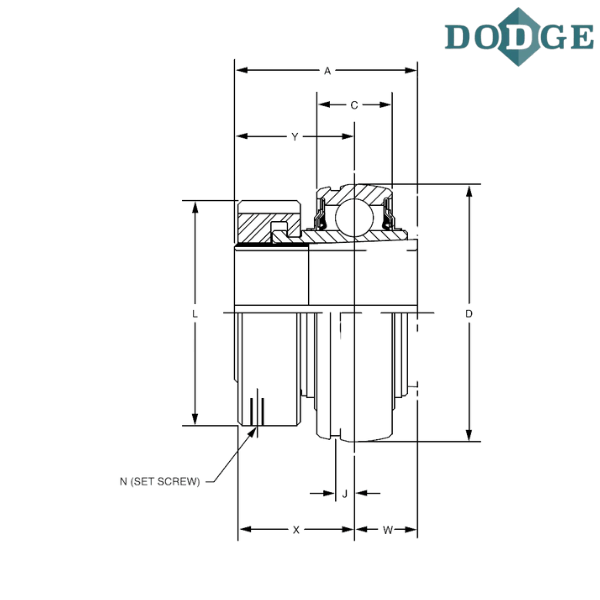

Overall Width (A) inch - 1.62
C (inch) - 0.75
Overall Length (D) inch - 2.8346
J (inch) - 0.2
L (inch) - 2.38
SetScrew, UNF (N) - 10-32 x 1/4
W (inch) - 0.54
X (inch) - 1.14
Y (inch) - 1.08
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
INS - Insert
GT - Wide inner ring, normal duty, thin wall adapter locking

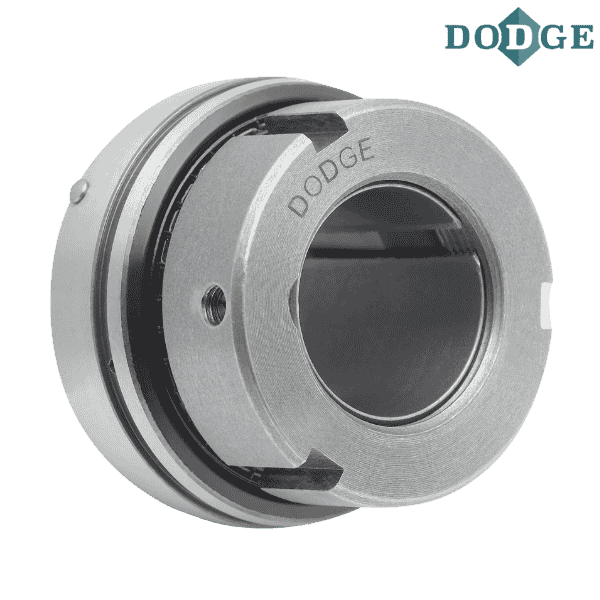

** Images are for representation purposes only
