129781 DODGE - INS-GT-103

Brand - DODGE
Item Number - 129781 DODGE - INS-GT-103

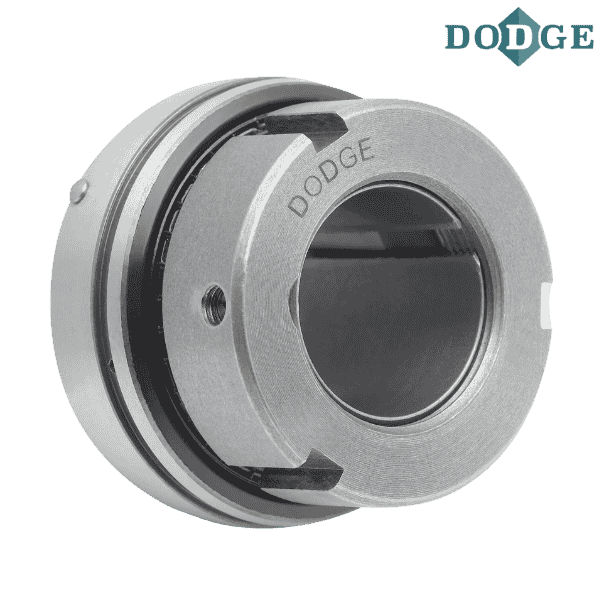

Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Bearing Inserts)
Series - 206
Shaft Size (inch) - 1.1875
Description - INS-GT-103
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129519
Description (Unit without Adapter Sleeve and Lock Nut) - INS-GT-06
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136526
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-06-103-D
Weight (lbs) - 1.2

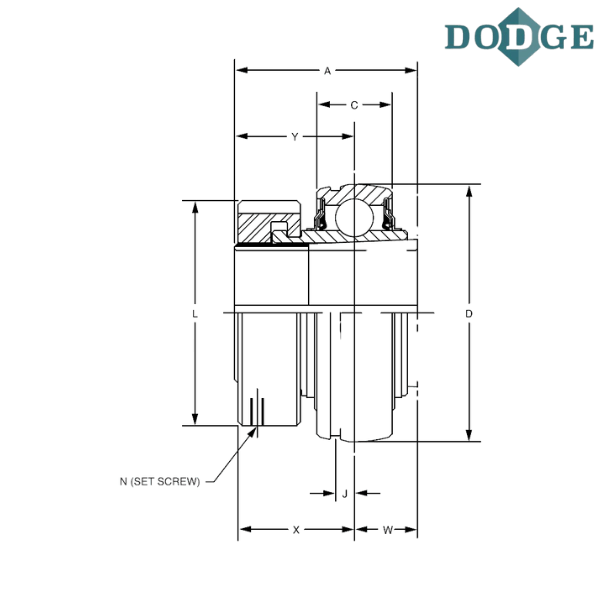

Overall Width (A) inch - 1.61
C (inch) - 0.69
Overall Length (D) inch - 2.4409
J (inch) - 0.16
L (inch) - 2.08
SetScrew, UNF (N) - 10-32 x 1/4
W (inch) - 0.52
X (inch) - 1.13
Y (inch) - 1.09
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
INS - Insert
GT - Wide inner ring, normal duty, thin wall adapter locking

** Images are for representation purposes only
