129778 DODGE - INS-GT-015

Brand - DODGE
Item Number - 129778 DODGE - INS-GT-015
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Bearing Inserts)
Series - 205
Shaft Size (inch) - 0.9375
Description - INS-GT-015
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129518
Description (Unit without Adapter Sleeve and Lock Nut) - INS-GT-05
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136523
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-05-015-D
Weight (lbs) - 0.8
Overall Width (A) inch - 1.46
C (inch) - 0.59
Overall Length (D) inch - 2.0472
J (inch) - 0.16
L (inch) - 1.8
SetScrew, UNF (N) - 10-32 x 1/4
W (inch) - 0.48
X (inch) - 1
Y (inch) - 0.98
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
INS - Insert
GT - Wide inner ring, normal duty, thin wall adapter locking

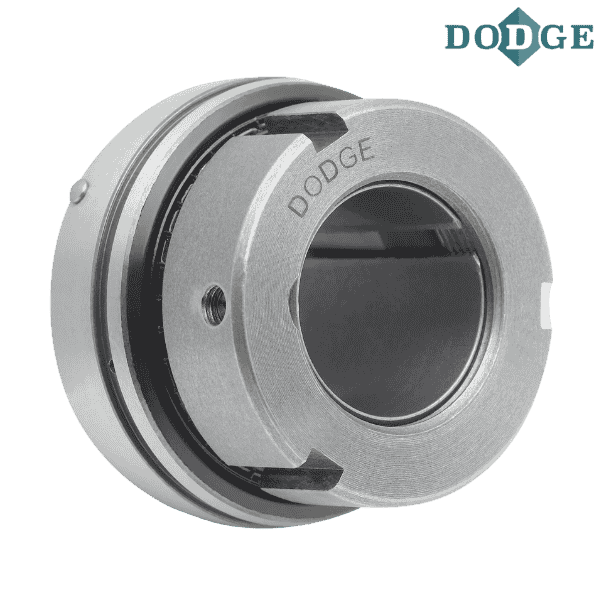

** Images are for representation purposes only
